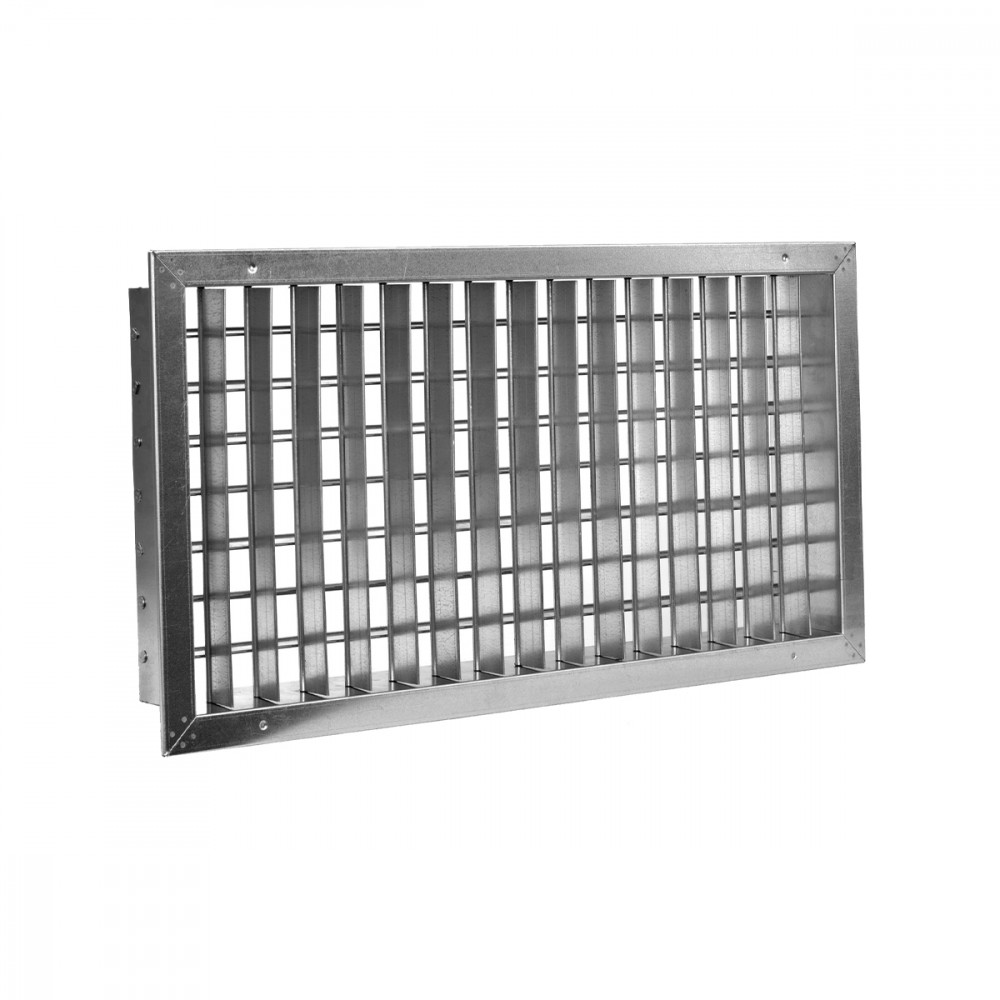

GRILLES

BMI

CHARACTERISTICS:
High volume industrial grilles with adjustable blades 50 mm pitch.
CONSTRUCTION:
Galvanized steel. Models made of copper, stainless steel AISI 304, 2B or BA finish, are available on demand.
UTILIZATION:
For wall installation and for air delivery.
FIXING:
Fixing screws (clips on request).
ACCESSORIES:
• Calibration damper made of galvanized steel and fins with opposite movement.
• Mounting counterframes made of galvanized steel sheet.
• Galvanized steel plenum, standard or insulated.
Dimensions

BMIOV


1= Hole dimension

BMIVO


BMIVBMIO


1= Hole dimension
CHOICE AND SIZING

Mod.

Ak [m2]

Q [m3/h]

LWA [dB(A)]

X(0,25) [m]

Dpt [Pa]

min

max

min

max

min

max

min

max

BMI 500x200

0,0791

680

1370

30

47

3,7

7,4

5

20

BMI 600x200

0,0957

830

1650

31

48

3,9

7,7

5

20

BMI 700x200

0,1123

970

1940

32

48

4

8

5

20

BMI 800x200

0,1291

1120

2230

32

49

4,2

8,3

5

20

BMI 900x200

0,1459

1260

2520

33

50

4,2

8,5

5

20

BMI 1000x200

0,1628

1410

2810

34

50

4,4

8,7

5

20

BMI 1200x200

0,1968

1700

3400

34

51

4,5

9,1

5

20

BMI 1400x200

0,2310

2000

3990

35

52

4,7

9,4

5

20

BMI 1500x200

0,2482

2150

4290

36

52

4,8

9,6

5

20

BMI 1800x200

0,3001

2590

5190

36

53

5

10

5

20

BMI 500x300

0,1207

1040

2090

32

49

4,1

8,2

5

20

BMI 600x300

0,1459

1260

2520

33

50

4,2

8,5

5

20

BMI 700x300

0,1713

1480

2960

34

50

4,4

8,8

5

20

BMI 800x300

0,1968

1700

3400

34

51

4,5

9,1

5

20

BMI 900x300

0,2225

1920

3850

35

52

4,7

9,4

5

20

BMI 1000x300

0,2482

2150

4290

36

52

4,8

9,6

5

20

BMI 1200x300

0,3001

2590

5190

36

53

5

10

5

20

BMI 1400x300

0,3523

3040

6090

37

54

5,2

10,4

5

20

BMI 1500x300

0,3785

3270

6540

38

54

5,3

10,5

5

20

BMI 1800x300

0,4576

3950

7910

38

55

5,5

11

5

20

BMI 500x400

0,1628

1410

2810

34

50

4,4

8,7

5

20

BMI 600x400

0,1968

1700

3400

34

51

4,5

9,1

5

20

BMI 700x400

0,2310

2000

3990

35

52

4,7

9,4

5

20

BMI 800x400

0,2655

2290

4590

36

52

4,9

9,7

5

20

BMI 900x400

0,3001

2590

5190

36

53

5

10

5

20

BMI 1000x400

0,3349

2890

5790

37

54

5,1

10,3

5

20

BMI 1200x400

0,4048

3500

7000

38

55

5,3

10,7

5

20

BMI 1400x400

0,4752

4110

8220

39

55

5,5

11,1

5

20

BMI 1500x400

0,5106

4410

8830

39

56

5,6

11,3

5

20

BMI 1800x400

0,6173

5330

10670

40

57

5,9

11,8

5

20

BMI 2000x400

0,6888

5950

11910

40

57

6

12,1

5

20

BMI 500x500

0,2053

1770

3550

35

51

4,6

9,2

5

20

BMI 600x500

0,2482

2150

4290

36

52

4,8

9,6

5

20

BMI 700x500

0,2914

2520

5040

36

53

5

9,9

5

20

BMI 800x500

0,3349

2890

5790

37

54

5,1

10,3

5

20

BMI 900x500

0,3785

3270

6540

38

54

5,3

10,5

5

20

BMI 1000x500

0,4224

3650

7300

38

55

5,4

10,8

5

20

BMI 1200x500

0,5106

4410

8830

39

56

5,6

11,3

5

20

BMI 1400x500

0,5995

5180

10360

40

56

5,8

11,7

5

20

BMI 1500x500

0,6441

5570

11130

40

57

5,9

11,9

5

20

BMI 1800x500

0,7786

6730

13460

41

58

6,2

12,4

5

20

BMI 2000x500

0,8689

7510

15020

42

58

6,3

12,7

5

20

BMI 600x600

0,3001

2590

5190

36

53

5

10

5

20

BMI 800x600

0,4048

3500

7000

38

55

5,3

10,7

5

20

BMI 900x600

0,4576

3950

7910

38

55

5,5

11

5

20

BMI 1000x600

0,5106

4410

8830

39

56

5,6

11,3

5

20

BMI 1200x600

0,6173

5330

10670

40

57

5,9

11,8

5

20

BMI 1400x600

0,7247

6260

12530

41

57

6,1

12,2

5

20

BMI 1500x600

0,7786

6730

13460

41

58

6,2

12,4

5

20

BMI 1800x600

0,9413

8140

16270

42

59

6,5

12,9

5

20

BMI 2000x600

1,0504

9080

18160

42

59

6,6

13,2

5

20

BMI 800x800

0,5461

4720

9440

39

56

5,7

11,4

5

20

BMI 900x800

0,6173

5330

10670

40

57

5,9

11,8

5

20

BMI 1000x800

0,6888

5950

11910

40

57

6

12,1

5

20

BMI 1200x800

0,8327

7200

14390

41

58

6,3

12,6

5

20

BMI 1400x800

0,9776

8450

16900

42

59

6,5

13

5

20

BMI 1500x800

1,0504

9080

18160

42

59

6,6

13,2

5

20

BMI 1800x800

1,2698

10970

21950

43

60

6,9

13,8

5

20

BMI 2000x800

1,4169

12250

24490

44

61

7,1

14,2

5

20

BMI 1000x1000

0,8689

7510

15020

42

58

6,3

12,7

5

20

BMI 1200x1000

1,0504

9080

18160

42

59

6,6

13,2

5

20

BMI 1400x1000

1,2331

10660

21320

43

60

6,9

13,7

5

20

BMI 1500x1000

1,3249

11450

22900

44

60

7

13,9

5

20

BMI 1800x1000

1,6017

13840

27690

44

61

7,3

14,5

5

20

BMI 2000x1000

1,7873

15450

30900

45

62

7,4

14,9

5

20
Accessories and configurations

SC

CTPBMI

1= Fixing coupling

2= Frame with mounting brackets



BMI

Type of fixing

Fixing with clips

Standard



BMI

Type of fixing

Fixing with screws



BMI

4 Holes

1= Ø 3,5 Countersunk hole


Specifications text

BMIV(O)

INDUSTRIAL GALVANISED STEEL GRILLE WITH SINGLE LINE OF VERTICAL OR HORIZONTAL ADJUSTABLE BLADES WITH LARGE FLOW RATE CAPACITY, 50 MM PITCH

CONSTRUCTION:
Galvanised steel.
On request, constructions in AISI 304 stainless steel in 2B or BA finishes are available.
USE:
On the wall, for air supply.
INSTALLATION:
Fixing with screws (clips on request).
ACCESSORIES:
• Volume control damper in galvanised steel with opposed blades.
• Mounting counter-frame in galvanised steel sheet.
• Standard or insulated galvanised steel plenum.
MODEL: BMI*/*** x *** (width x height mm)

BMIVO(OV)

INDUSTRIAL GALVANISED STEEL GRILLE WITH DOUBLE ORDER OF VERTICAL OR HORIZONTAL ADJUSTABLE BLADES WITH LARGE FLOW RATE CAPACITY, 50 MM PITCH

CONSTRUCTION:
Galvanised steel.
On request, constructions in AISI 304 stainless steel in 2B or BA finishes are available.
USE:
On the wall, for air supply.
INSTALLATION:
Fixing with screws (clips on request).
ACCESSORIES:
• Volume control damper in galvanised steel with opposed blades.
• Mounting counter-frame in galvanised steel sheet.
• Standard or insulated galvanised steel plenum.
MODEL: BMI*/*** x *** (width x height mm)
