NMF

CHARACTERISTICS:

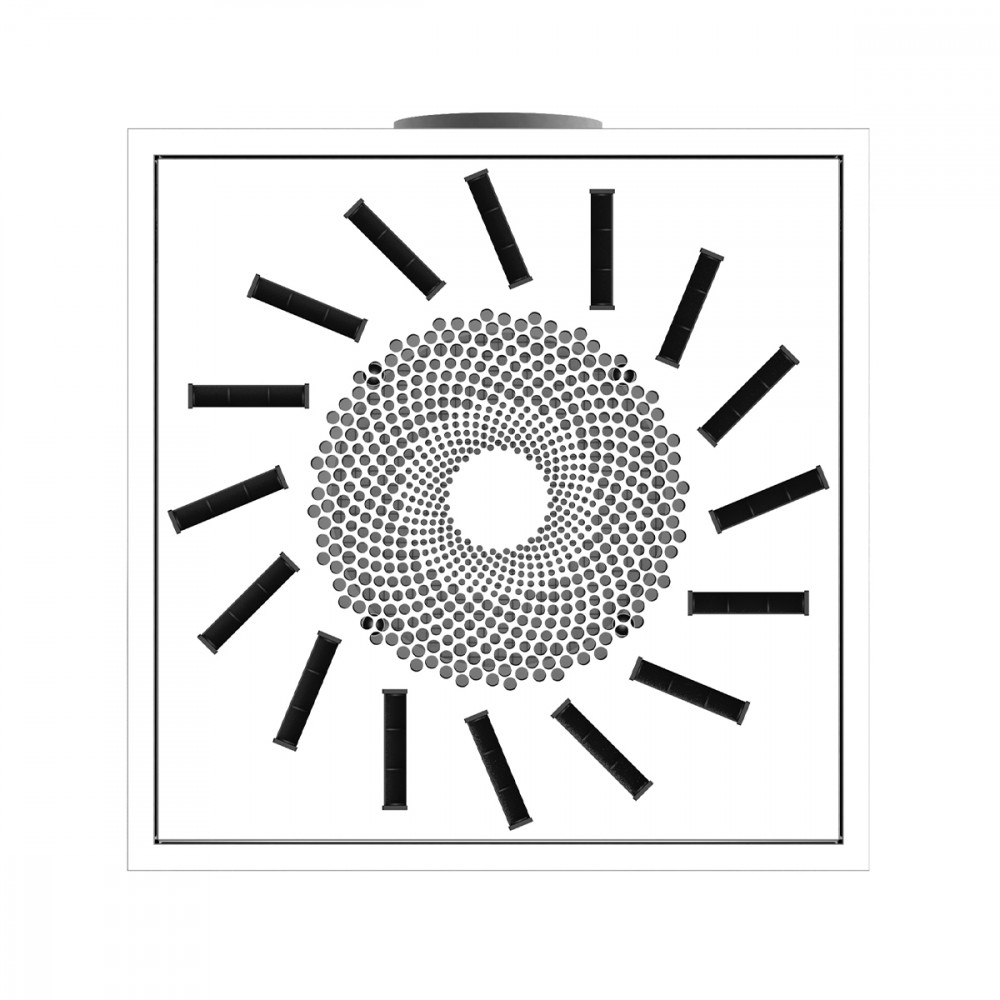

Supply and return swirl diffuser with adjustable throws and multifunction plenum.

CONSTRUCTION:

RAL 9010 white painted steel diffuser with deflection blades made of polypropylene RAL 9005 black. Double flow plenum made in insulated galvanized steel.

UTILIZATION:

For modular false-ceiling installation for contemporary air supply and return.
Installation height 2,5 - 4,1 m.

FIXING:

Fixing on false-ceiling.

Dimensions

NMF

CHOICE AND SIZING

Mod.	Ak [m2]	P [m3/h]		LWA [dB(A)]		X(0,20) [m]		Dpt [Pa]
Mod.	Ak [m2]	min	max	min	max	min	max	min	max
NMF	0,0189	160	375	24	33	2,2	4,3	10	50

Accessories and configurations

NMF

Instructions

NMF

1= Supply

2= Return

3= Filter

Specifications text

STEEL DIFFUSER RAL9010 OUTLET AND INLET FUNCTION WITH HELICAL FLOW WITH ADJUSTABLE DEFLECTORS AND MULTIFUNCTIONAL PLENUM.EXTERNAL DIMENSION 595X595 MM

CONSTRUCTION:
Diffuser in white painted steel RAL 9010 with deflectors in black polypropylene RAL 9005.Double flow galvanised steel plenum with anti-condensation insulation.
USE:
Ceiling installation for air supply and return function (simultaneous). Installation height 2.5 - 4.1 m.
INSTALLATION:
Fixing to false ceiling.
MODEL: NMF
SIZES:595 x 595 mm.
