EAVCR
Exhaust valve
EAVCM
Supply valve
MEASURES
*= Dimensions
MEASURES
*= Dimensions
Products
DIFFUSERS
EAV
CHARACTERISTICS:

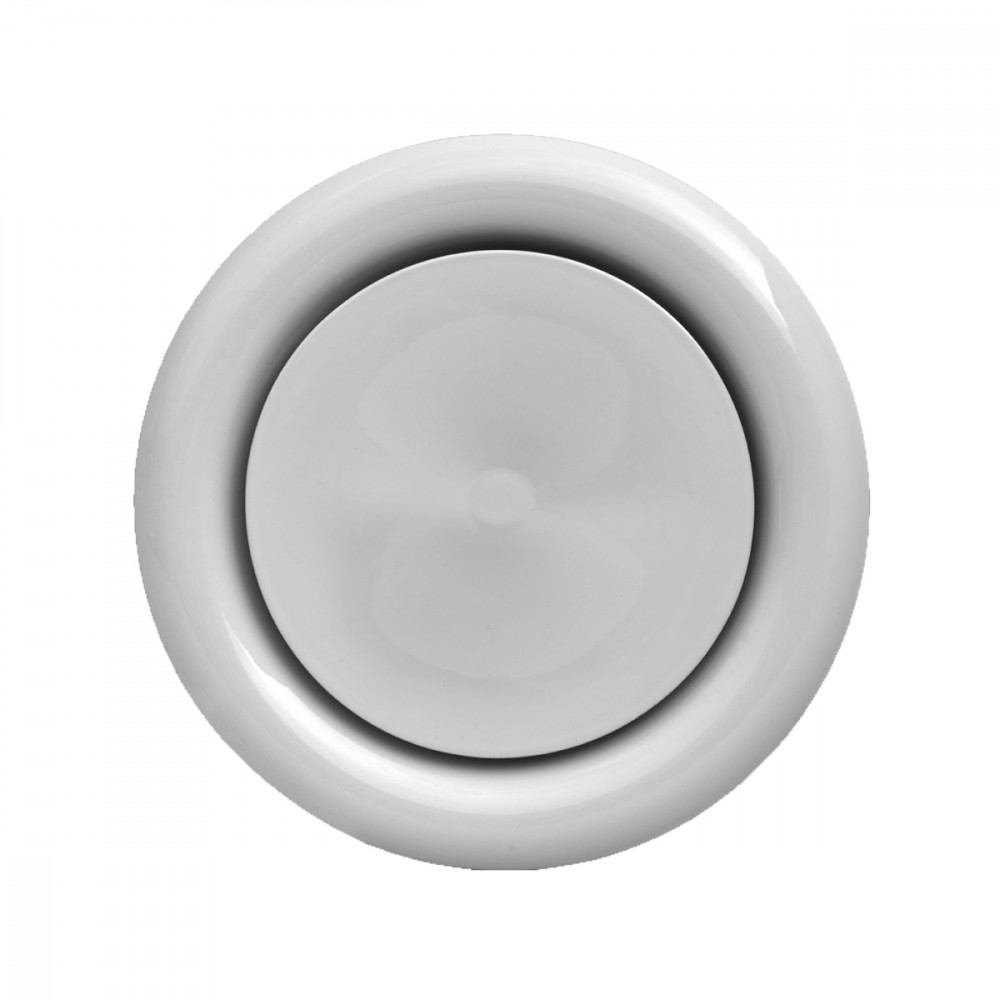

EAV-CR: exhaust valves in steel with mounting ring.
EAV-CM: Supply valves in steel with mounting ring.
CONSTRUCTION:
RAL 9010 white painted steel with fixing ring. UTILIZATION:
For ceiling installation and for air intake.
Installation height: 2,5 - 3,0 m.
Dimensions
Exhaust valve
Supply valve
*= Dimensions
*= Dimensions
CHOICE AND SIZING
|
Mod. |
Ak [m2] |
Q [m3/h] |
LWA [dB(A)] |
Dpt [Pa] |
|||
|
min |
max |
min |
max |
min |
max |
||
|
EAVCR 100 |
0,00785 |
30 |
60 |
21 |
26 |
10 |
50 |
|
EAVCR 125 |
0,01227 |
40 |
90 |
21 |
28 |
10 |
50 |
|
EAVCR 150 |
0,01767 |
50 |
120 |
21 |
29 |
10 |
50 |
|
EAVCR 160 |
0,02011 |
60 |
130 |
21 |
29 |
10 |
50 |
|
EAVCR 200 |
0,03142 |
80 |
190 |
22 |
31 |
10 |
50 |
|
EAVCM 100 |
0,00785 |
20 |
40 |
- |
27 |
10 |
50 |
|
EAVCM 125 |
0,01227 |
30 |
70 |
- |
30 |
10 |
50 |
|
EAVCM 150 |
0,01767 |
50 |
110 |
21 |
33 |
10 |
50 |
|
EAVCM 160 |
0,02011 |
50 |
120 |
20 |
32 |
10 |
50 |
|
EAVCM 200 |
0,03142 |
90 |
210 |
22 |
36 |
10 |
50 |
Specifications text
EAV CR
RETURN VALVES IN STEEL RAL9010 WITH FIXING RING
CONSTRUCTION:
White steel RAL 9010 with fixing ring.
USE:
On the ceiling, for air return function. Installation height:2.5 - 3.0 m
MODEL: EAVCR***
EAV CM
SUPPLY VALVES IN STEEL RAL9010 WITH FIXING RING
CONSTRUCTION:
White steel RAL 9010 with fixing ring.
USE:
On the ceiling, for air return function. Installation height:2.5 - 3.0 m
MODEL: EAVCM***
