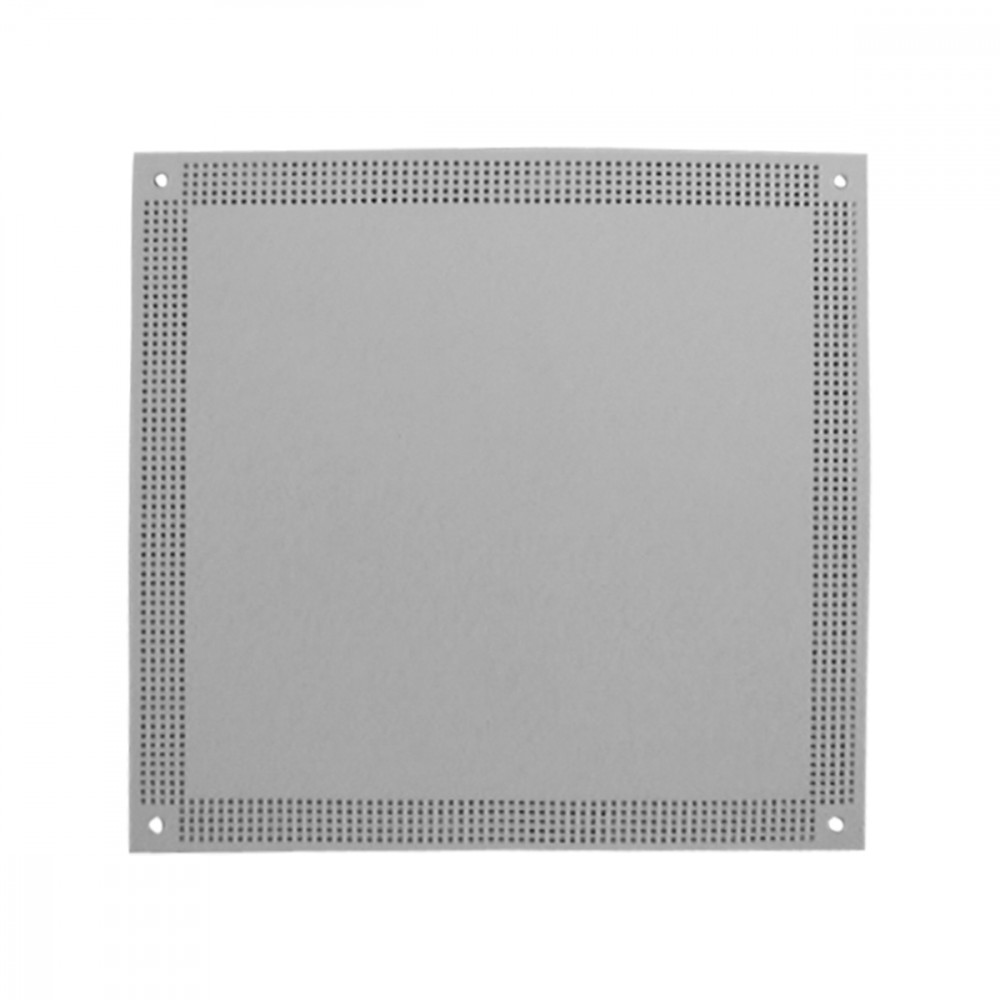

DP

CHARACTERISTICS:

Flat screen diffuser with ceiling radial flow.

CONSTRUCTION:

RAL 9010 white painted steel.

UTILIZATION:

Ceiling installation for air supply.
Installation height: 2,8 - 3 m.

FIXING:

Mounting with panel of modular ceiling.

ACCESSORIES:

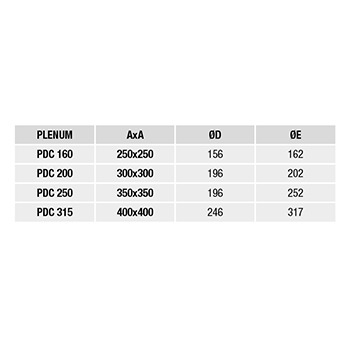

• Galvanized steel connecting plenum.

Dimensions

TIPO A

TYPE A

TIPO B

TYPE B

CHOICE AND SIZING

Mod.	Q [m3/h]		LWA [dB(A)]		X(0,20) [m]		Dpt [Pa]
Mod.	min	max	min	max	min	max	min	max
DP 160	180	410	-	43	1,1	3,4	10	50
DP 200	240	540	-	41	1,6	5,1	10	50
DP 250	320	720	-	39	2,4	7,7	10	50
DP 315	430	970	-	38	3,7	11,8	10	50

Accessories and configurations

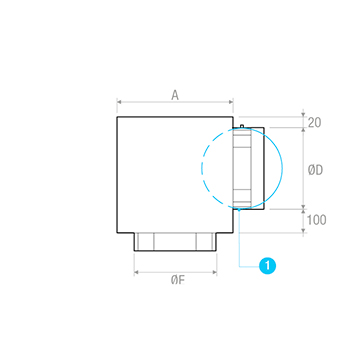

DPC

1= Optional damper

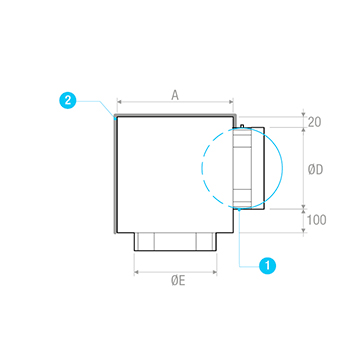

DPCI

1= Optional damper

2= Insulation

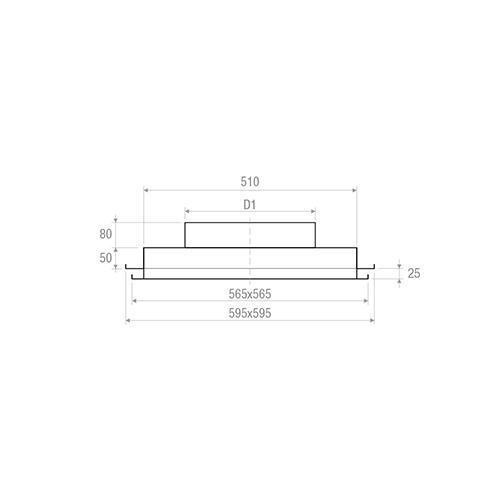

MEASURES

Specifications text

FLAT SCREEN DIFFUSER IN RAL9010 GALVANISED STEEL WITH CEILING RADIAL FLOW

CONSTRUCTION:
RAL 9010 white painted steel.
USE:
Ceiling for air intake. Installation height: 2.8 - 3 m
INSTALLATION:
Fixing with panel on modular false ceiling.
ACCESSORIES:
• Connection plenum in galvanised steel.
MODEL: DP***
