DMQN

CHARACTERISTICS:

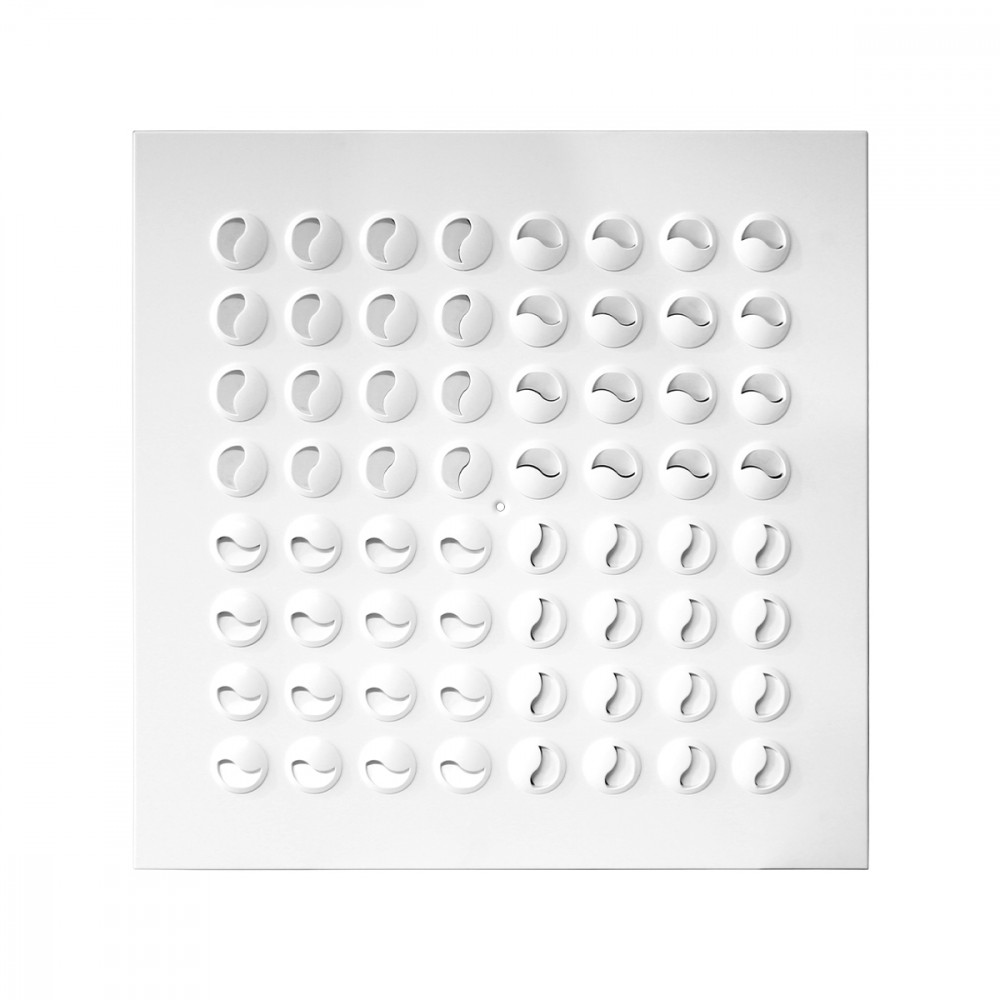

Diffusers with adjustable nozzles on panel.

CONSTRUCTION:

RAL 9010 white painted steel, nozzles are made of ABS RAL 9010 white.

UTILIZATION:

For ceiling installation and for air delivery.
Installation height: 2,6 – 4,1 m.

FIXING:

Fixing by using lateral screws or central screw on muonting bridge.

ACCESSORIES:

• Galvanized steel plenum, standard or insulated, with or without equalizer sheet, calibration damper and mounting bridge.

Dimensions

DMQN

CHOICE AND SIZING

Mod.	Ak [m2]	Q [m3/h]		LWA [dB(A)]		X(0,20) [m]		Dpt [Pa]
Mod.	Ak [m2]	min	max	min	max	min	max	min	max
DMQN 600x64	0,0165	180	420	20	35	2,3	6,2	10	50

Accessories and configurations

PQZ1

PQZ2

PQZI1

Plenum externally insulated thickness 6 mm

PQZI2

Plenum externally insulated thickness 6 mm

Instructions

ASSEMBLY DETAIL

1= Fixing bridge

Specifications text

DIFFUSER IN RAL9010 GALVANISED STEEL WITH ADJUSTABLE MICRO NOZZLES.EXTERNAL DIMENSION 595X595 MM

CONSTRUCTION:
RAL 9010 white painted steel, RAL 9010 white ABS micro-nozzles
USE:
On the ceiling, for air supply. Installation height:2.6 - 4.1 m
INSTALLATION:
Fixing with lateral screws or by central screw on the mounting bridge.
ACCESSORIES:
• Standard or insulated galvanised steel plenum, with or without equalising grid, control damper and mounting bridge.
MODEL: DMQN
SIZES:595 x 595 mm.
