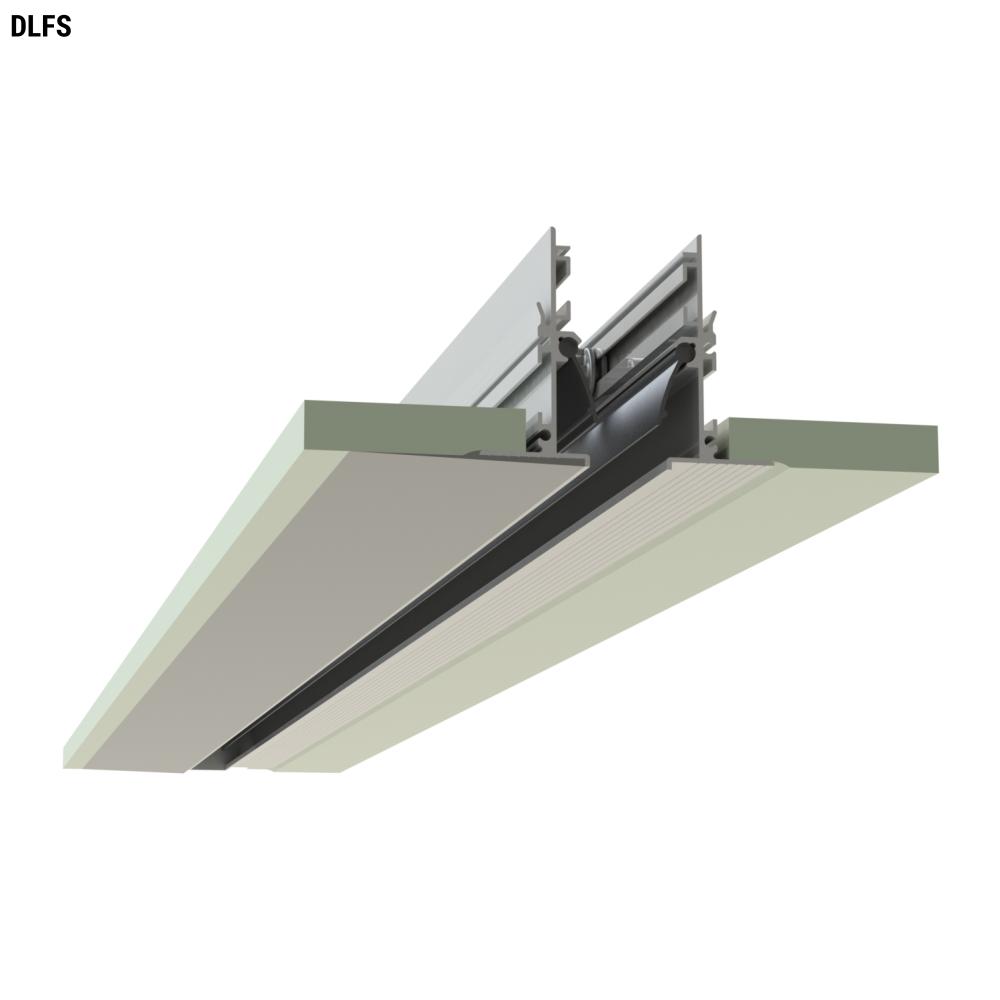

DLFS
CHARACTERISTICS:
Linear slot diffusers coanceled mounting. FINISHING:
Extruded aluminium painted RAL 9005 with deflector RAL 9005 (standard). Extruded aluminium painted RAL 9016 matt with deflector RAL 9016. UTILIZATION:
for ceiling or wall installation and for air return and supply. Installation height: 2,5-3,1 m. FIXING:
By inner mounting mobile bracket, or by springs inside the plenum. ACCESSORIES:
Galvanized steel connecting plenum. Dimensions
CHOICE AND SIZING
|
Mod. |
Ak [m2] |
Q (mc/h) |
Lwa (dB(A)) |
X 0,25 (m) |
Dp (pa) |
||||
|
min |
max |
min |
max |
min |
max |
min |
max |
||
|
DLFSA 1F 1000 |
0,00959 |
100 |
230 |
32 |
46 |
3,1 |
6,9 |
10 |
50 |
|
DLFSA 2F 1000 |
0,01930 |
200 |
460 |
33 |
47 |
4,1 |
9,2 |
10 |
50 |
|
DLFSA 3F 1000 |
0,02901 |
300 |
690 |
34 |
48 |
4,8 |
11 |
10 |
50 |
|
DLFSA 4F 1000 |
0,03872 |
410 |
930 |
35 |
49 |
5,6 |
12,5 |
10 |
50 |
DLFSA SLOTS 25 mm
|
Mod. |
Ak [m2] |
Q (mc/h) |
Lwa (dB(A)) |
X 0,25 (m) |
Dp (pa) |
||||
|
min |
max |
min |
max |
min |
max |
min |
max |
||
|
DLFSB 1F 1000 |
0,01198 |
125 |
280 |
33 |
47 |
3,3 |
7,1 |
10 |
50 |
|
DLFSB 2F 1000 |
0,02912 |
250 |
570 |
34 |
48 |
4,3 |
9,4 |
10 |
50 |
|
DLFSB 3F 1000 |
0,03626 |
375 |
860 |
35 |
49 |
5 |
11,2 |
10 |
50 |
|
DLFSB 4F 1000 |
0,0484 |
510 |
1160 |
36 |
50 |
5,8 |
12,7 |
10 |
50 |
DLFSA SLOTS 30 mm
|
Mod. |
Ak [m2] |
Q (mc/h) |
Lwa (dB(A)) |
X 0,25 (m) |
Dp (pa) |
||||
|
min |
max |
min |
max |
min |
max |
min |
max |
||
|
DLFSC 1F 1000 |
0,01438 |
150 |
340 |
35 |
48 |
4,1 |
7,9 |
10 |
50 |
|
DLFSC 2F 1000 |
0,02895 |
300 |
690 |
36 |
49 |
5,1 |
10,2 |
10 |
50 |
|
DLFSC 3F 1000 |
0,04351 |
450 |
1030 |
37 |
50 |
5,8 |
12 |
10 |
50 |
|
DLFSC 4F 1000 |
0,05808 |
610 |
1390 |
38 |
51 |
6,6 |
13,5 |
10 |
50 |
Accessories and configurations
PDL1
1 = Tube
2 = Spring
Fixing to the plenum by springs CM
PDL3
1 = Fixing screws
2 = Inner mounting bracket inclinated
Fixing to the plenum by inner mpunting brackets
DLFS10
Standard diffuser
DLFS20
1 = Standard diffuser
2 = Deflector
DLFS30
1 = Standard diffuser
2 = Sliding damper
DLFS4
1 = Standard diffuser
2 = Deflector
3 = Sliding damper
DLFS50
1 = Standard diffuser
2 = Deflector
3 = Sliding damper
4 = Equalizer
