DIFFUSERS

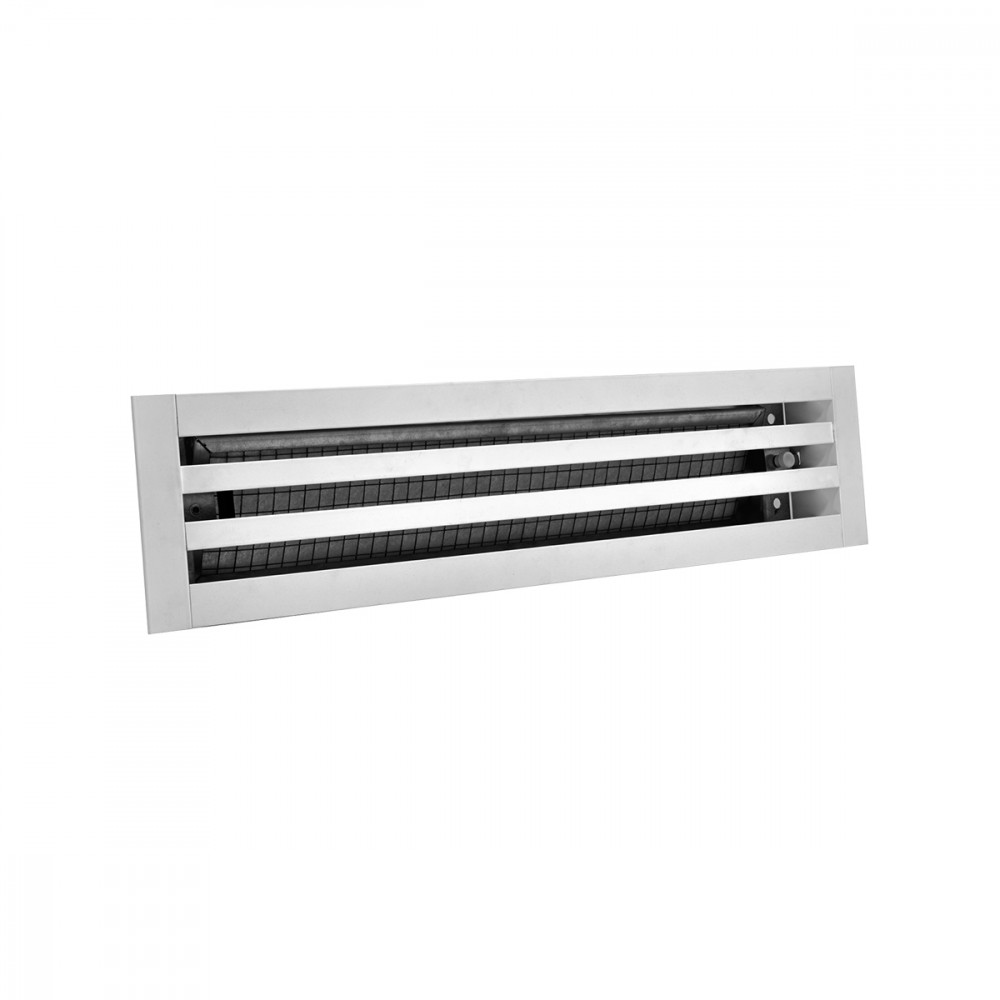

DLFFP

CHARACTERISTICS:
Filter linear slot diffusers.
CONSTRUCTION:
Anodized extruded aluminium.
UTILIZATION:
For ceiling installation and for air intake and delivery.
Installation height: 2,5 - 3,1 m.
FIXING:
• By frontal screws.
• By inner mounting mobile bracket.
ACCESSORIES:
• Galvanized steel connecting plenum with insulation.
Dimensions
CHOICE AND SIZING

Mod.

Ak [m2]

Q [m3/h]

LWA [dB(A)]

Dpt [Pa]

min

max

min

max

min

max

DLFFP3 1000

0,02149

140

380

17

41

10

50

DLFFP4 1000

0,02868

180

510

17

42

10

50

DLFFP5 1000

0,03588

230

640

18

42

10

50

Accessories and configurations

PDL2

1= Fixing screws

2= Inner mounting bracket

3= Crew

Fixing to the plenum by inner mounting brackets CVL



PDL3

1= Fixing screws

2= Inner mounting bracket inclinated

Fixing to the plenum by inner mounting brackets inclinated CVL


Instructions

DLFFP

1= Filter



DLFFP

1= Filter



DLFFP

1= Filter



CVL

Configuration change CVL to PDL 3 to PDL 2 with finger pressure


Specifications text

LINEAR ALUMINIUM DIFFUSER WITH FILTER HOLDER SLOTS

CONSTRUCTION:
Extruded anodised aluminium.
USE:
On the ceiling, for air supply and return. Installation height:2.5 - 3.1 m
INSTALLATION:
• By front screws.
• With movable internal bracket.
ACCESSORIES:
• Connection plenum in galvanised steel with insulation.
MODEL:DLFFP**/*** (no.slots-length mm)
