DCT
DCPT
MISURE

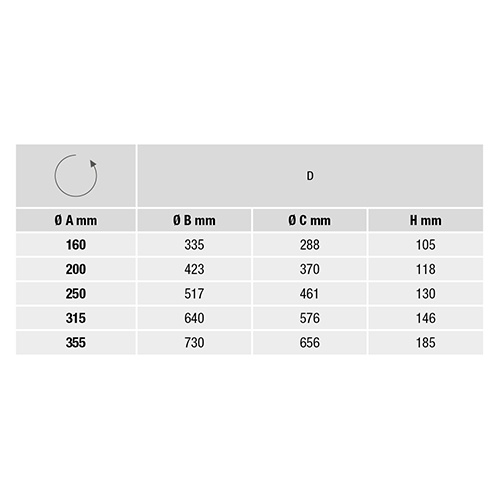

D= Dimensions
1= Termostatic operation
1= Termostatic operation

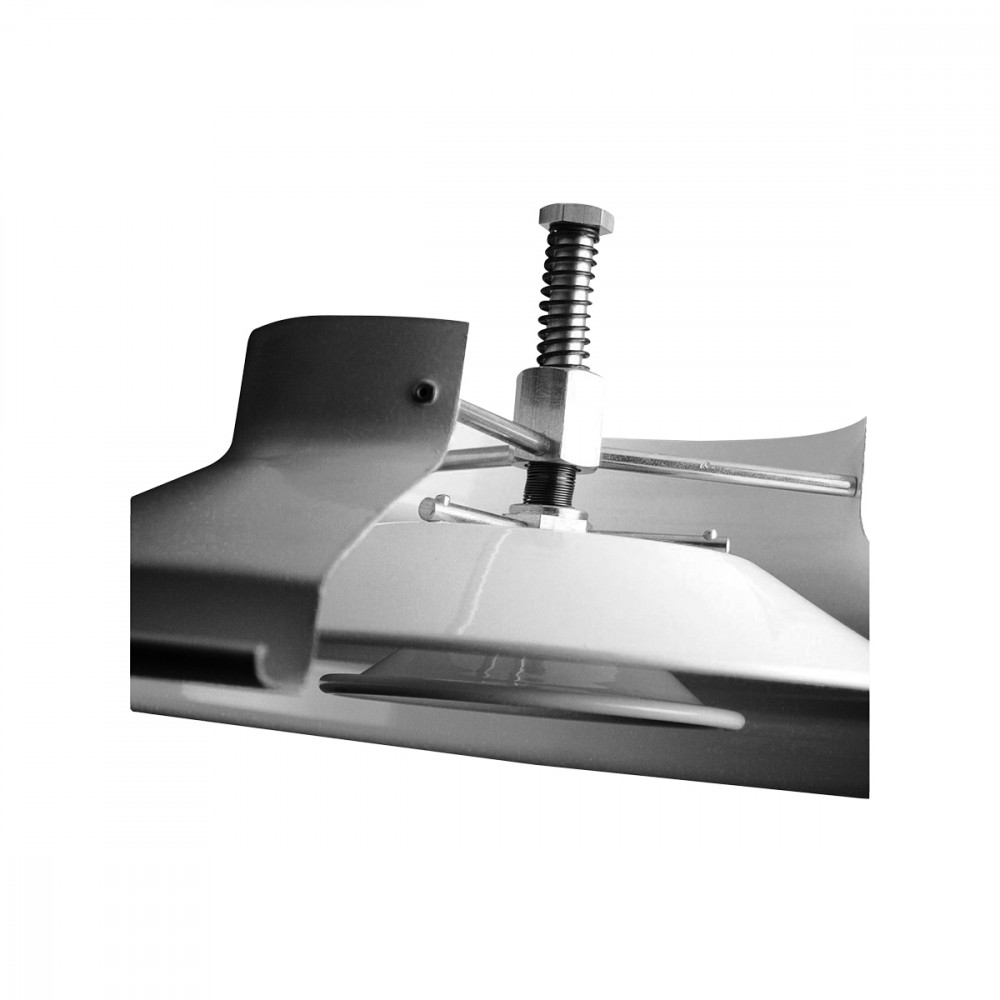

DIFFUSER WITH ADJUSTABLE CONES IN RAL9010 GALVANISED STEEL WITH THERMOSTATIC OPERATION.
CONSTRUCTION:
RAL 9010 white painted steel.
USE:
On the ceiling, for air supply and return. Installation height:2.7 - 3.5 m
Heating operation with temperature difference up to 30 °C.
Cooling operation with temperature difference up to 16 °C.
INSTALLATION:
Fixing with panel on modular false ceiling. DCPT model panel version available.
ACCESSORIES:
• Connection plenum in galvanised steel.
• Butterfly control damper (SF) (adjustment by central screw through the front part of the diffuser).
• Equaliser (EQ).
MODEL: DCT***
