DIFFUSERS

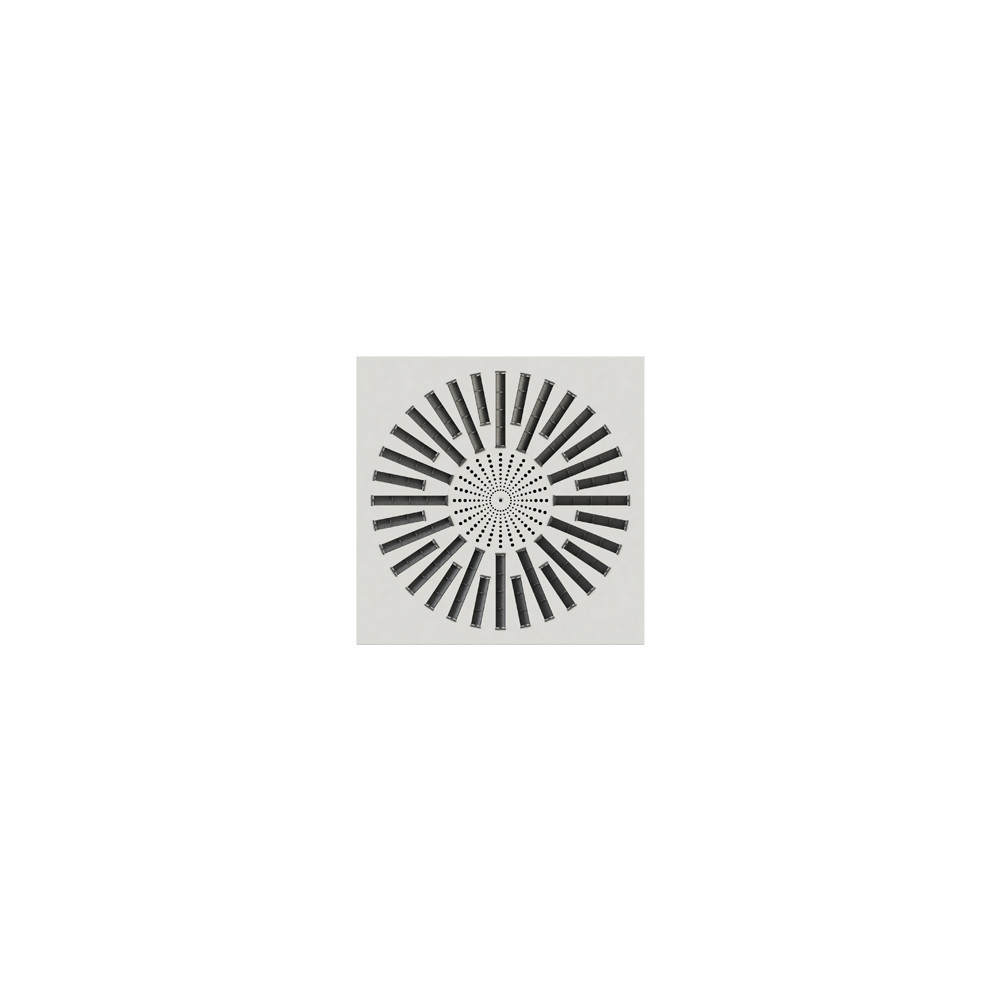

BQM1

CHARACTERISTICS:
Swirl mixed diffusers with adjustable throws.
CONSTRUCTION:
RAL 9010 white painted steel, deflection blades are made of polypropylene RAL 9005 black.
UTILIZATION:
For ceiling installation and for air intake (without deflectors) and delivery.
Installation height: 2,5 – 4,1 m.
FIXING:
Fixing by using lateral screws or central screw on muonting bridge.
ACCESSORIES:
• Galvanized steel plenum, standard or insulated, with or without equalizer sheet, calibration damper and mounting bridge.
Dimensions
CHOICE AND SIZING

Mod.

Ak [m2]

P [m3/h]

LWA [dB(A)]

X(0,20) [m]

Dpt [Pa]

min

max

min

max

min

max

min

max

BQM1

0,0643

490

1060

24

41

2,1

4,5

10

50

Accessories and configurations

PQZ1

PQZ2

PQZI1

Plenum externally insulated thickness 6 mm



PQZI2

Plenum externally insulated thickness 6 mm


Specifications text

DIFFUSER IN RAL 9010 GALVANISED STEEL WITH MIXED FLOW AND ADJUSTABLE DEFLECTORS.EXTERNAL DIMENSION 595X595 MM

CONSTRUCTION:
White painted steel RAL 9010 with deflectors in black polypropylene RAL 9005.
USE:
Ceiling, for air supply and return (without deflectors). Installation height:2.5 - 4.1 m
INSTALLATION:
Fixing with lateral screws or by central screw on the mounting bridge.
ACCESSORIES:
• Standard or insulated galvanised steel plenum, with or without equalising grid, control damper and mounting bridge.
MODEL: *****
SIZES:595 x 595 mm.
