Dimensions

BQFSMF

Closing with push-pull 1= Filter’s thickness 10 mm 2= push-pull 3= Filter Perforated sheet

DIMENSIONI FILTRO

B= Dimension

CHOICE AND SIZING

Mod.	Ak [m2]	Q [m3/h]		LWA [dB(A)]		Dpt [Pa]
Mod.	Ak [m2]	min	max	min	max	min	max
200x200	0,014	50	130	-	24	20	70
300x200	0,021	70	190	-	25	20	70
400x200	0,028	100	250	-	27	20	70
500x200	0,035	130	320	-	28	20	70
600x200	0,042	150	380	-	29	20	70
800x200	0,056	200	500	-	31	20	70
200x300	0,021	80	190	-	25	20	70
300x300	0,0315	110	280	-	28	20	70
400x300	0,042	150	380	-	29	20	70
500x300	0,0525	190	470	-	30	20	70
600x300	0,063	230	560	-	31	20	70
800x300	0,084	300	760	-	33	20	70
200x400	0,028	100	250	-	27	20	70
300x400	0,042	150	380	-	29	20	70
400x400	0,056	200	500	-	30	20	70
500x400	0,07	250	630	-	32	20	70
600x400	0,084	300	760	-	33	20	70
800x400	0,112	400	1010	-	34	20	70
200x500	0,035	130	320	-	28	20	70
300x500	0,0525	190	470	-	30	20	70
400x500	0,07	250	630	-	32	20	70
500x500	0,0875	310	790	-	33	20	70
600x500	0,105	380	950	-	34	20	70
800x500	0,14	500	1260	-	35	20	70
200x600	0,042	150	380	-	29	20	70
300x600	0,063	230	570	-	31	20	70
400x600	0,084	300	760	-	33	20	70
500x600	0,105	380	950	-	34	20	70
600x600	0,126	450	1130	-	35	20	70
800x600	0,168	600	1510	-	36	20	70
200x800	0,056	200	500	-	33	20	70
300x800	0,084	300	760	-	34	20	70
400x800	0,112	400	1010	-	35	20	70
500x800	0,14	500	1260	-	36	20	70
600x800	0,168	600	1510	-	38	20	70
800x800	0,224	810	2020	-	40	20	70

Specifications text

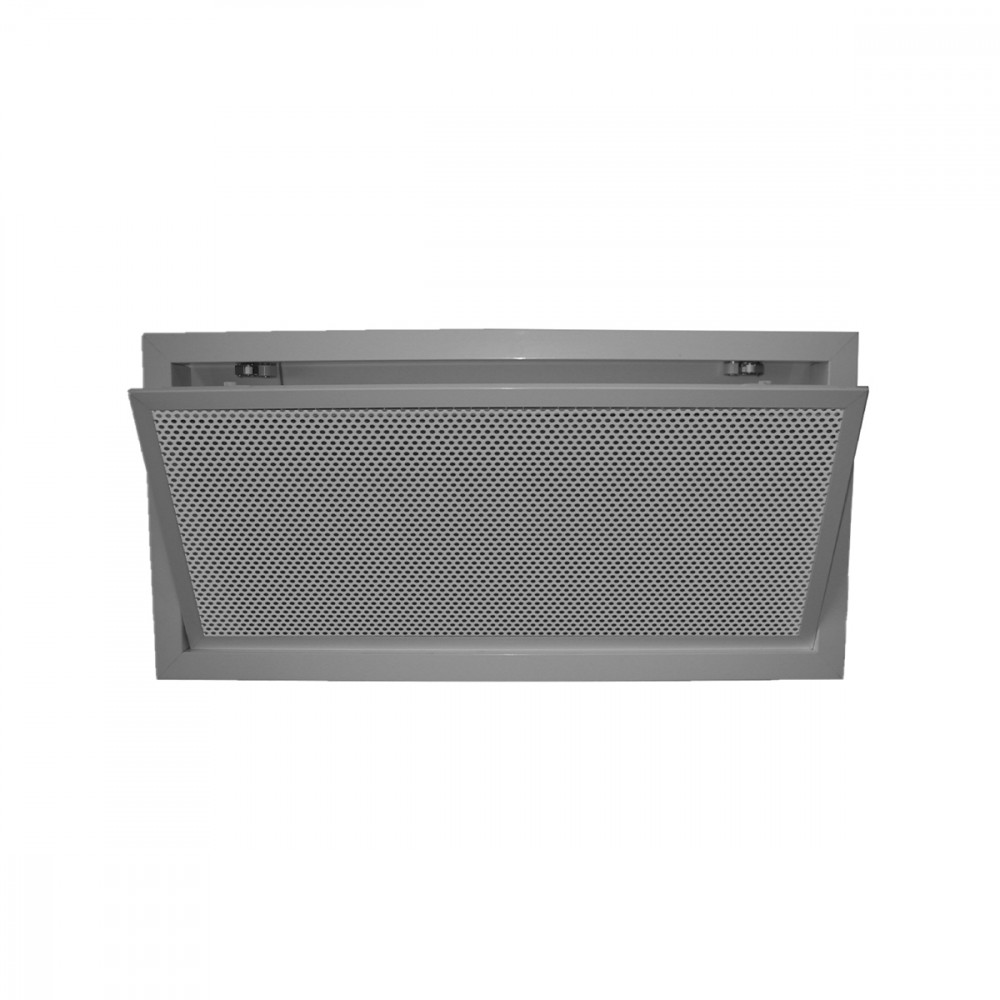

ALUMINIUM/GALVANISED STEEL DIFFUSER RAL9010 WITH PERFORATED FILTER SCREEN WITH PUSH/PULL OPENING SYSTEM

CONSTRUCTION:
Frame in aluminium painted RAL 9010, screen in steel sheet painted RAL 9010.
USE:
Wall/ceiling installation for air intake.
INSTALLATION:
With clips (screws on request).
CLOSURE:
With push/pull.
MODEL: BQFSMF
SIZES: *** x *** mm. (WxH)
