BQFC60

CHARACTERISTICS:

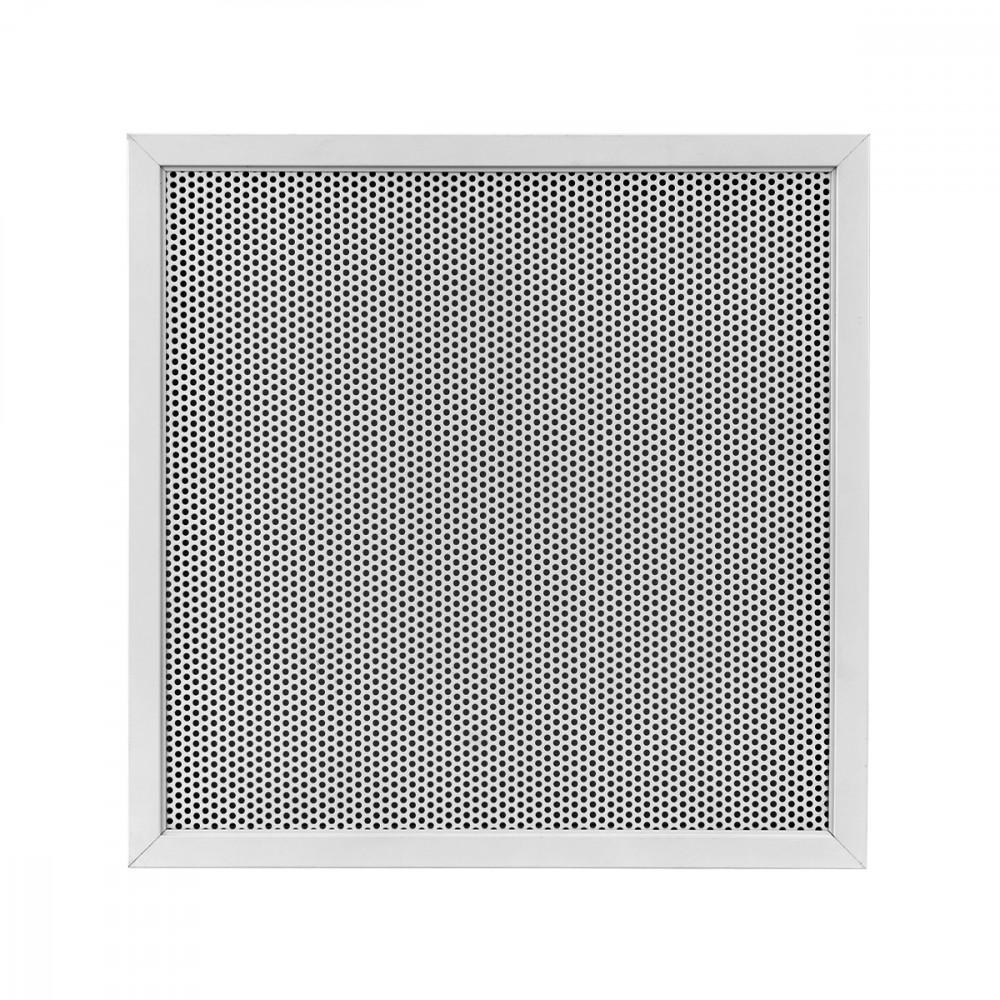

Perfored face square diffusers with frame.

CONSTRUCTION:

Frame in aluminium, perfored sheet steel painted white RAL 9010.

UTILIZATION:

For ceiling installation and for air intake and delivery.
Installation height: 2,5 – 4,0 m.

FIXING:

Clips (frontal screws on request).

ACCESSORIES:

• Galvanized steel plenum, standard or insulated, with or without equalizer sheet.
• Calibration damper made of galvanized steel and fins with opposite movement.

Dimensions

BQFC60R

BQFC60M

CHOICE AND SIZING

Mod.	Q [m3/h]		LWA [dB(A)]		X(0,20) [m]		Dpt [Pa]
Mod.	min	max	min	max	min	max	min	max
BQFC60MS 160	180	410	-	48	1,1	3,4	10	50
BQFC60MS 200	240	540	-	46	1,6	5,1	10	50
BQFC60MS 250	320	720	-	44	2,4	7,7	10	50
BQFC60MS 315	430	970	-	43	3,7	11,8	10	50
BQFC60ML 160	180	410	-	52	1,1	3,4	10	50
BQFC60ML 200	240	540	-	50	1,6	5,1	10	50
BQFC60ML 250	320	720	-	48	2,4	7,7	10	50
BQFC60ML 315	430	970	-	47	3,7	11,8	10	50

Accessories and configurations

PQZ1

PQZ2

BQFC60MS

BQFC60ML

BQFC60

Air flow configuration BQFC60R: Return / no deflectors BQFC60MS: Supply / deflectors / top spigot BQFC60ML: Supply / deflectors / side spigot

Specifications text

SQUARE DIFFUSER IN GALVANISED STEEL/ALUMINIUM RAL9010 PERFORATED WITH FRAME.EXTERNAL DIMENSION 595X595 MM

CONSTRUCTION:
Aluminium frame, perforated sheet steel painted white RAL 9010.
USE:
On the ceiling, for air supply and return. Installation height:2.5 - 4.0 m
INSTALLATION:
With clips (screws on request).
ACCESSORIES:
• Standard or insulated galvanised steel plenum, with or without equalising grid.
• Volume control damper in galvanised steel with opposed blades.
MODEL: BQFC60
SIZES:595 x 595 mm.
