DIFFUSERS

BQF

CHARACTERISTICS:

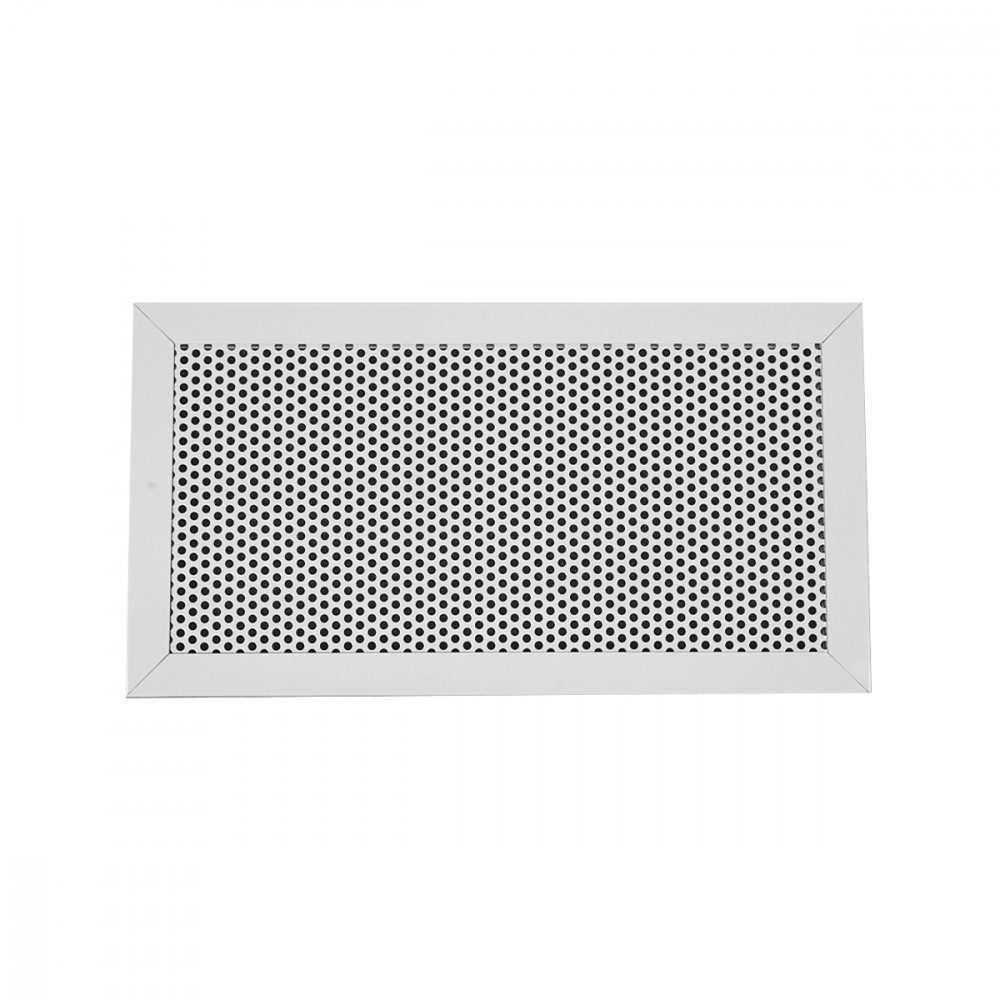

Perfored face return grilles.
CONSTRUCTION:
Frame made of RAL 9010 white painted aluminium. Panel made of RAL 9010 white painted steel.
UTILIZATION:
For wall installation and for air intake.
FIXING:
• Fixing by using clips or frontal screws on demand.
ACCESSORIES:
• Galvanized steel plenum, standard or insulated.
• Calibration damper made of galvanized steel and fins with opposite movement.
• Mounting counterframes made of galvanized steel sheet.
Dimensions
CHOICE AND SIZING

Mod.

Ak [m2]

Q [m3/h]

LWA [dB(A)]

Dpt [Pa]

min

max

min

max

min

max

BQF 300x300

0,0305

120

260

-

21

10

50

BQF 400x300

0,0422

160

360

-

22

10

50

BQF 500x300

0,0543

200

460

-

23

10

50

BQF 600x300

0,0668

250

560

-

23

10

50

BQF 800x300

0,0924

350

780

-

25

10

50

BQF 1000x300

0,1190

450

1000

-

26

10

50

BQF 400x400

0,0584

220

490

-

23

10

50

BQF 500x400

0,0752

280

630

-

24

10

50

BQF 600x400

0,0924

350

780

-

25

10

50

BQF 800x400

0,1280

480

1070

-

26

10

50

BQF 1000x400

0,1647

620

1380

-

27

10

50

BQF 500x500

0,0968

360

810

-

25

10

50

BQF 600x500

0,1190

450

1000

-

26

10

50

BQF 800x500

0,1647

620

1380

-

27

10

50

BQF 1000x500

0,2120

790

1770

-

28

10

50

BQF 600x600

0,1462

550

1220

-

26

10

50

BQF 800x600

0,2025

760

1690

-

27

10

50

BQF 1000x600

0,2606

980

2180

-

28

10

50

Accessories and configurations

BQFSC

PDZ1

PDZ2

PDZI1

Plenum externally insulated thickness 6 mm



PDZI2

Plenum externally insulated thickness 6 mm


Specifications text

ALIMINIUM/GALVANISED STEEL DIFFUSER RAL9010 WITH PERFORATED SCREEN

CONSTRUCTION:
Aluminum frame painted white RAL 9010.
Screen in RAL 9010 white painted steel sheet.

USE:
On the wall, for intake.
INSTALLATION:
• Fixing with clips or on request with front screws.
ACCESSORIES:
• Standard or insulated galvanised steel plenum.
• Volume control damper in galvanised steel with opposed blades.
• Mounting counter-frame in galvanised steel sheet.
MODEL: BQF
SIZES: *** x *** mm. (WxH)



Documents download
Information request

Write us a message
