REGULATION

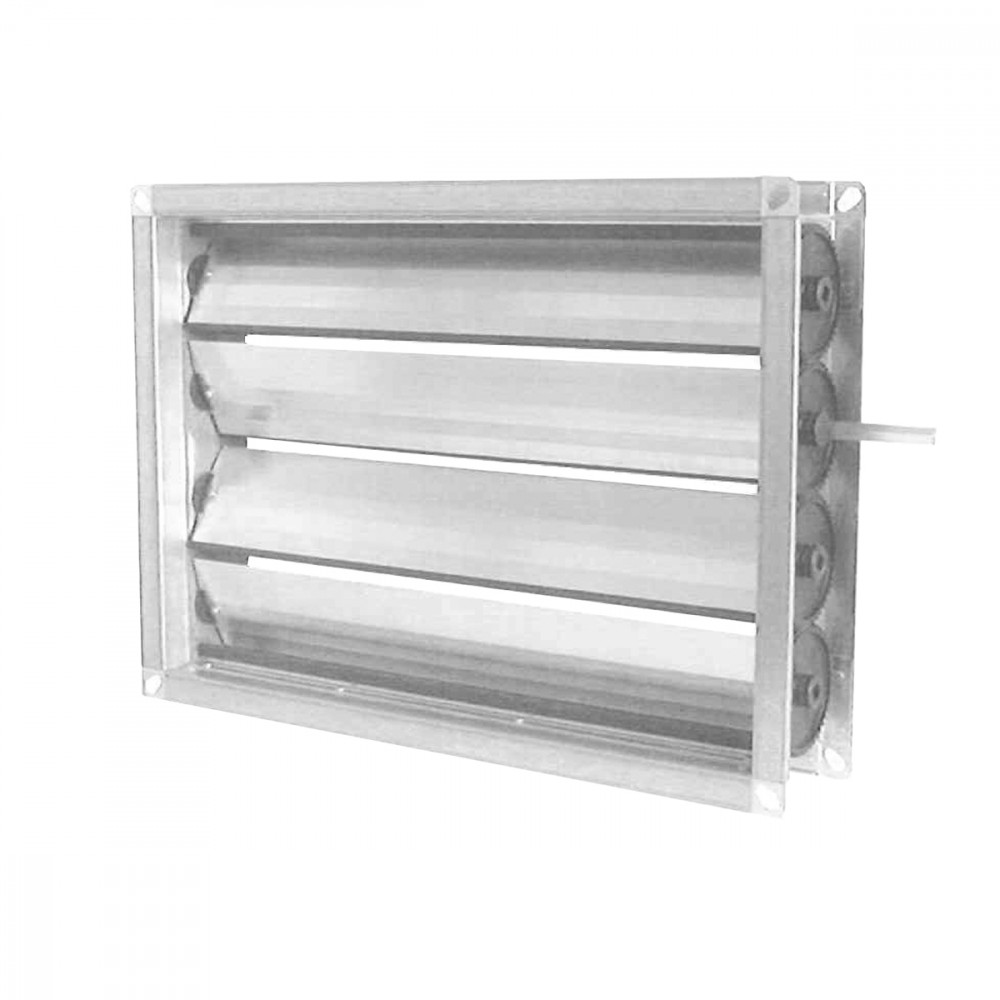

SRCT

CHARACTERISTICS:
Shut-off damper leakage 100 mm pitch certified class 4 according to EN 1751.

ARTICLE DESCRIPTION:
SRCT-P : opposed blade damper with pin for servo-motor (standard).
SRCT -C: opposed blade damper with manual control.
CONSTRUCTION:
Galvanized steel frame. Extruded aluminium gears. Gears of rotation in plastic material.
FIXING:
By bolts on flanges corners.
DETAILS:
Drive: Counter rotating movement driven by manual control or servomotor.
Dimensions
CHOICE AND SIZING

Mod.

A1 [m2]

v [m/s]

Q [m3/h]

Dp (=40°) [Pa]

LWA (=40°) [dB(A)]

min

max

min

max

min

max

min

max

SRCT 200x210

0,0420

3

6

450

910

57

227

46

63

SRCT 400x210 - 200x410

0,0840

3

6

910

1810

57

227

49

66

SRCT 600x210 - 200x610

0,1260

3

6

1360

2720

57

227

51

68

SRCT 800x210 - 200x810

0,1680

3

6

1810

3630

57

227

52

69

SRCT 1000x210 - 200x1010

0,2100

3

6

2270

4540

57

227

53

70

SRCT 1200x210 - 200x1210

0,2520

3

6

2720

5440

57

227

54

71

SRCT 1400x210 - 200x1410

0,2940

3

6

3180

6350

57

227

54

71

SRCT 400x410

0,1640

3

6

1770

3540

57

227

52

69

SRCT 600x410 - 400x610

0,2460

3

6

2660

5310

57

227

54

71

SRCT 800x410 - 400x810

0,3280

3

6

3540

7080

57

227

55

72

SRCT 1000x410 - 400x1010

0,4100

3

6

4430

8860

57

227

56

73

SRCT 1200x410 - 400x1210

0,4920

3

6

5310

10630

57

227

57

74

SRCT 1400x410 - 400x1410

0,5740

3

6

6200

12400

57

227

57

74

SRCT 600x610

0,3660

3

6

3950

7910

57

227

55

72

SRCT 800x610 - 600x810

0,4880

3

6

5270

10540

57

227

57

74

SRCT 1000x610 - 600x1010

0,6100

3

6

6590

13180

57

227

58

75

SRCT 1200x610 - 600x1210

0,7320

3

6

7910

15810

57

227

58

75

SRCT 1400x610 - 600x1410

0,8540

3

6

9220

18450

57

227

59

76

SRCT 800x810

0,6480

3

6

7000

14000

57

227

58

75

SRCT 1000x810 - 800x1010

0,8100

3

6

8750

17500

57

227

59

76

SRCT 1200x810 - 800x1210

0,9720

3

6

10500

21000

57

227

60

77

SRCT 1400x810 - 800x1410

1,1340

3

6

12250

24490

57

227

60

77

SRCT 1000x1010

1,0100

3

6

10910

21820

57

227

60

77

SRCT 1200x1010 - 1000x1210

1,2120

3

6

13090

26180

57

227

60

78

SRCT 1400x1010 - 1000x1410

1,4140

3

6

15270

30540

57

227

61

78

SRCT 1200x1210

1,4520

3

6

15680

31360

57

227

61

78

SRCT 1400x1210 - 1200x1410

1,6940

3

6

18300

36590

57

227

62

79

SRCT 1400x1410

1,9740

3

6

21320

42640

57

227

63

80

Accessories and configurations

SRCT

Manual control

Code: CM10T - € 15,83


Specifications text

SEALED SHUT-OFF DAMPER WITH GALVANISED STEEL FRAME, EXTRUDED ALUMINIUM BLADES, PLASTIC ROTATION GEARS, 100 MM PITCH
CERTIFIED IN CLASS 4 ACCORDING TO EN 1751

OPERATION:
Opposed movement operated manually or with servomotor.
INSTALLATION:
By means of bolts at the corners of the flanges.
MODELS:
• SRC-T-P: opposed blade damper with pin for servomotor (standard).
• SRC-T-C: opposed blade damper with manual control (CM10).
