SRC-50

CHARACTERISTICS:

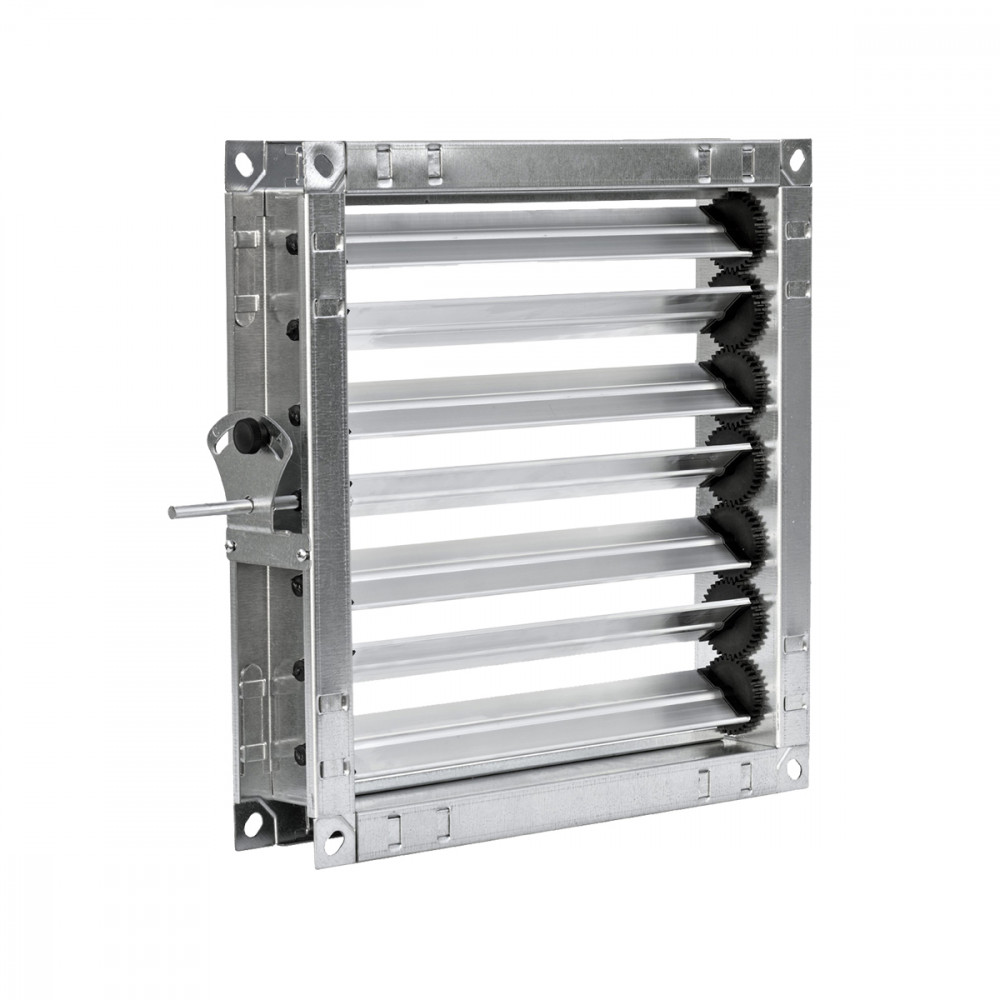

Volume control dampers 50 mm pitch.

ARTICLE DESCRIPTION:
SRC50-P: opposed blade damper with pin for servo-motor (standard).
SRC50-C: opposed blade damper with manual control.
CONSTRUCTION:
Galvanized steel frame. Extruded alluminium blades.
FIXING:
By bolts on flanges corners.
DETAILS:
Drive: Counter rotating movement by train of gear wheels made of nylon, driven by manual control or servomotor.
Dimensions
CHOICE AND SIZING

Mod.

A1 [m2]

v [m/s]

Q [m3/h]

Dp (=40°) [Pa]

LWA (=40°) [dB(A)]

min

max

min

max

min

max

min

max

SRC50 200x110

0,0220

3

6

240

480

31

125

38

55

SRC50 300x110

0,0330

3

6

360

710

31

125

39

57

SRC50 400x110

0,0440

3

6

480

950

31

125

41

58

SRC50 500x110

0,0550

3

6

590

1190

31

125

42

59

SRC50 600x110

0,0660

3

6

710

1430

31

125

42

60

SRC50 700x110

0,0770

3

6

830

1660

31

125

43

60

SR50 200x210

0,0420

3

6

450

910

31

125

40

58

SRC50 300x210 - 200x310

0,0630

3

6

680

1360

31

125

42

59

SRC50 400x210 - 200x410

0,0840

3

6

910

1810

31

125

43

61

SRC50 500x210 - 200x510

0,1050

3

6

1130

2270

31

125

44

62

SRC50 600x210 - 200x610

0,1260

3

6

1360

2720

31

125

45

62

SRC50 700x210 - 200x710

0,1470

3

6

1590

3180

31

125

46

63

SRC50 300x310

0,0930

3

6

1000

2010

31

125

44

61

SRC50 400x310 - 300x410

0,1240

3

6

1340

2680

31

125

45

62

SRC50 500x310 - 300x510

0,1550

3

6

1670

3350

31

125

46

63

SRC50 600x310 - 300x610

0,1860

3

6

2010

4020

31

125

47

64

SRC50 700x310 - 300x710

0,2170

3

6

2340

4690

31

125

48

65

SRC50 400x410

0,1640

3

6

1770

3540

31

125

46

63

SRC50 500x410 - 400x510

0,2050

3

6

2210

4430

31

125

47

64

SRC50 600x410 - 400x610

0,2460

3

6

2660

5310

31

125

48

65

SRC50 700x410 - 400x710

0,2870

3

6

3100

6200

31

125

49

66

SRC50 500x510

0,2550

3

6

2750

5510

31

125

48

65

SRC50 600x510 - 500x610

0,3060

3

6

3300

6610

31

125

49

66

SRC50 700x510 - 500x710

0,3570

3

6

3860

7710

31

125

50

67

SRC50 600x610

0,3660

3

6

3950

7910

31

125

50

67

SRC50 700x610 - 600x710

0,4270

3

6

4610

9220

31

125

50

68

SRC50 700x710

0,4970

3

6

5370

10740

31

125

51

68

Instructions

MANUAL CONTROL

Code: CM20


Specifications text

VOLUME CONTROL DAMPER WITH GALVANISED STEEL FRAME, EXTRUDED ALUMINIUM BLADES, NYLON ROTATION PINS, 50 MM PITCH

OPERATION:
Opposed movement by means of a train of nylon gears that can be driven manually or with a servomotor.
INSTALLATION:
By means of bolts at the corners of the flanges.
MODELS:
• SRC50-P: opposed blade damper with pin for servomotor (standard).
• SRC50-C: opposed blade damper with manual control (CM20).
