RVAV
CHARACTERISTICS:

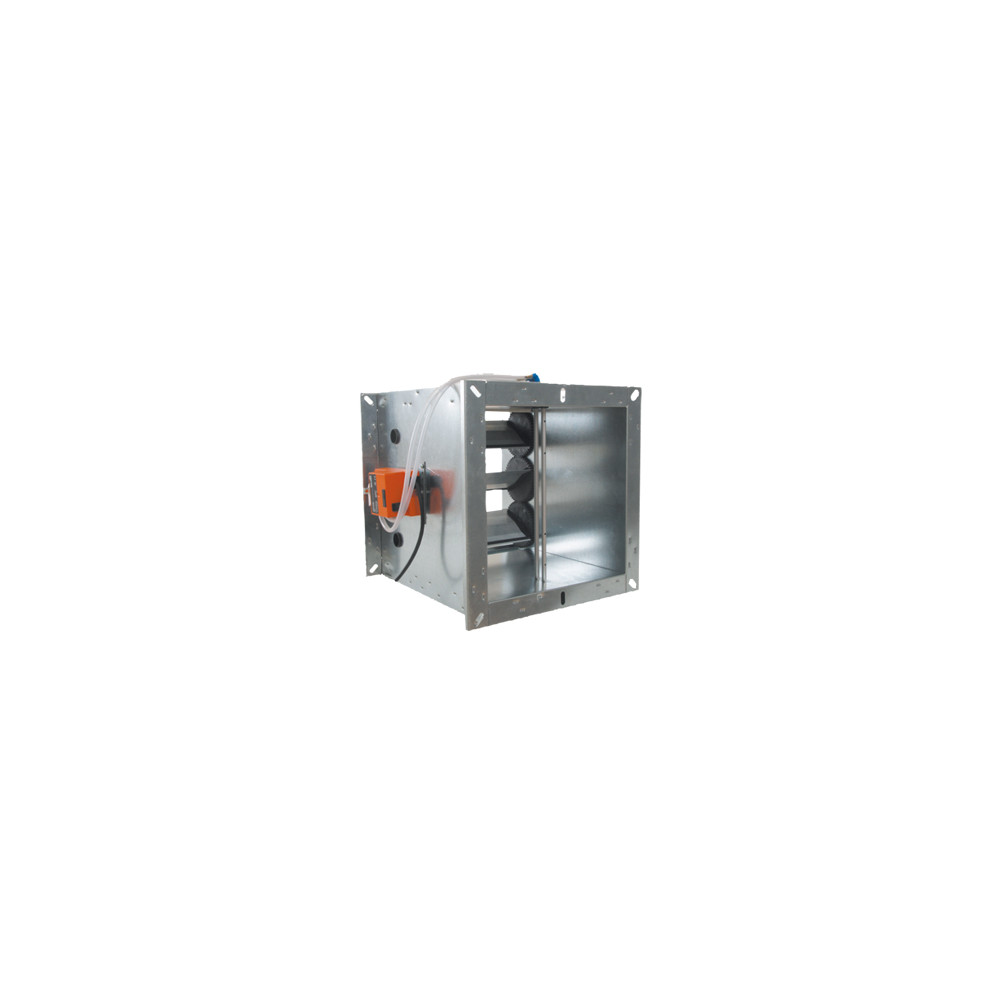

Rectangular variable air volume control dampers RVAV enable the regulation of supply or exhaust air volume in ventilation systems. They consist of a casing made of galvanized steel sheet, aluminium blades, a measuring device and electric actuator. Depending on project requirements RVAV can be controlled over temperature sensors, air quality sensors or pressure sensors placed in a room or ventilation ducts. Data on differential measuring by a measuring device are transmitted to the motor actuator where they are compared with the reference signal. Depending on a signal difference, the actuator closes or opens therefore keeping optimal air amount in the room. On request, the regulators can be performed with external insulation model RVAV-Z. Dimensions
Instructions
RVAV
1= For air supply it is recomended to install a perforated panel perforation ~50%
RVAV
1= For air supply it is recomended to install a perforated panel perforation ~50%
Specifications text
VARIABLE AIR FLOW REGULATOR FOR RECTANGULAR DUCTS
It lets you regulate supply or return air flow in ventilation systems. It consists of a galvanised steel sheet casing, aluminium blades, a measuring device and an electric actuator. Depending on project needs, RVAV can be controlled by temperature sensors, air quality sensors or pressure sensors located in a room or on ventilation ducts. Differential data measured by a device are transmitted to the motor actuator where they are compared with the reference signal. Depending on the differential, the actuator closes or opens in order to maintain the optimum amount of air in the room.
The regulator can be made with external insulation model CVAV-Z on request.
