REGULATION

EFI

CHARACTERISTICS:

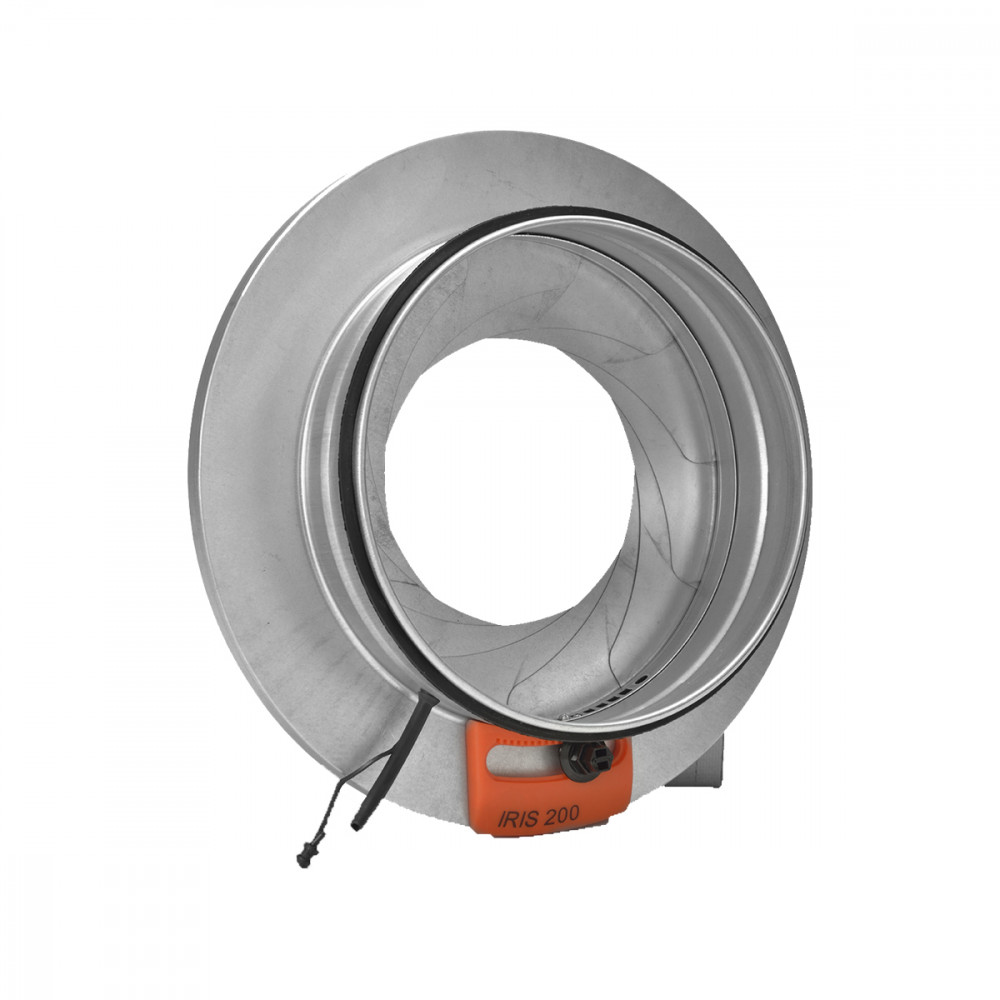

Iris damper.
CONSTRUCTION:
Galvanized steel.
UTILIZATION:
On circular duct for regulation and measurement.
FIXING:
By coupling.
Dimensions
CHOICE AND SIZING

Mod.

A1 [m2]

v [m/s]

Q [m3/h]

Dp [Pa] (pos. 4)

LWA [dB(A)] (pos. 4)

min

max

min

max

min

max

min

max

EFI100

0,0077

3

6

80

170

13

52

30

50

EFI125

0,0121

3

6

130

260

13

52

30

50

EFI160

0,0199

3

6

210

430

13

52

30

50

EFI200

0,0311

3

6

340

670

13

52

30

50

EFI250

0,0487

3

6

530

1050

13

52

30

50

EFI315

0,0774

3

6

840

1670

13

52

30

50

EFI400

0,1250

3

6

1350

2700

13

52

30

50

EFI500

0,1956

3

6

2110

4220

13

52

30

50

EFI630

0,3107

3

6

3360

6710

13

52

30

50

EFI800

0,5014

3

6

5420

10830

13

52

30

50

Instructions

EFI

1= Detecting pressure points

2= Adjustament lever


Specifications text

IRIS DAMPER IN GALVANISED STEEL

USE:
On circular duct for regulation and measurement.
INSTALLATION:
With coupling.
