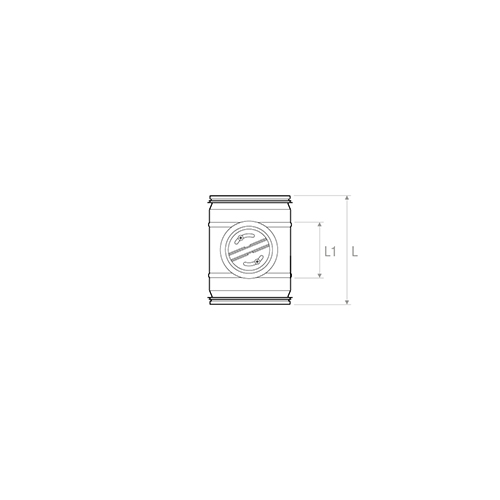

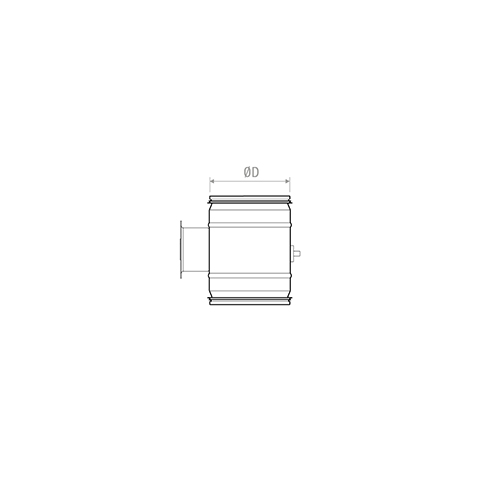

DBCC
DBCC
DBCC

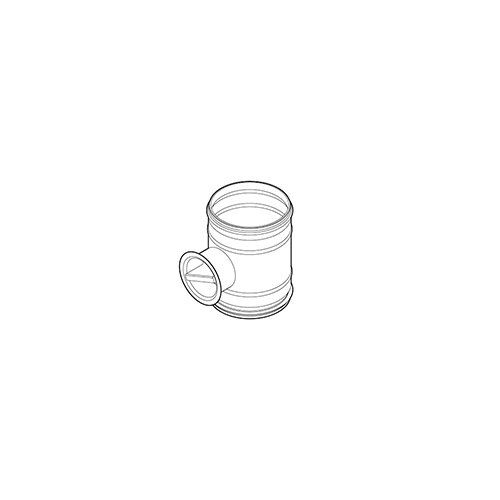

Isometric view

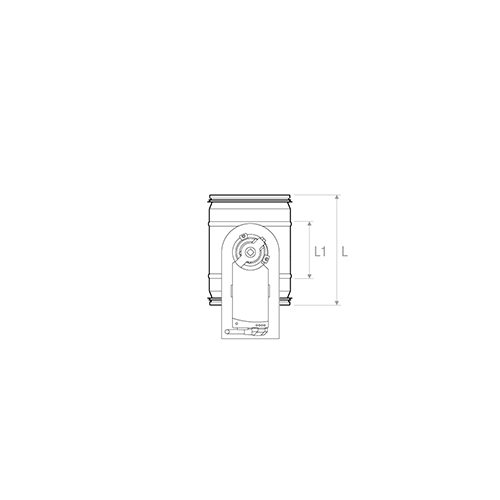

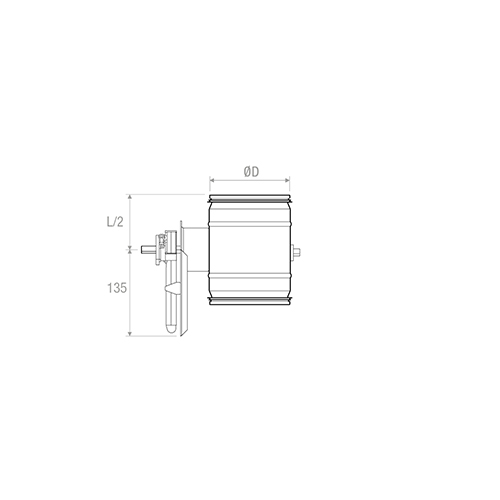

DBCP
DBCP
DBCP

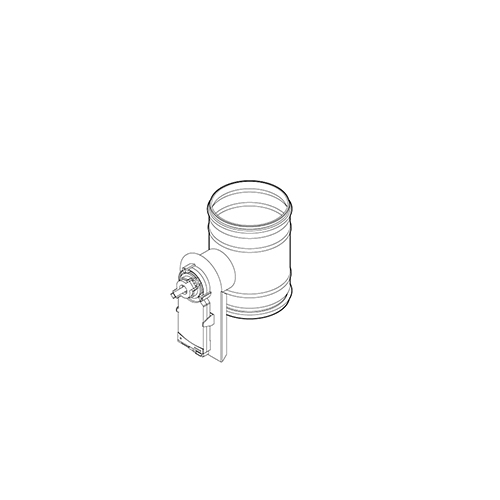

Isometric view
Products
REGULATION
DBC
CHARACTERISTICS:

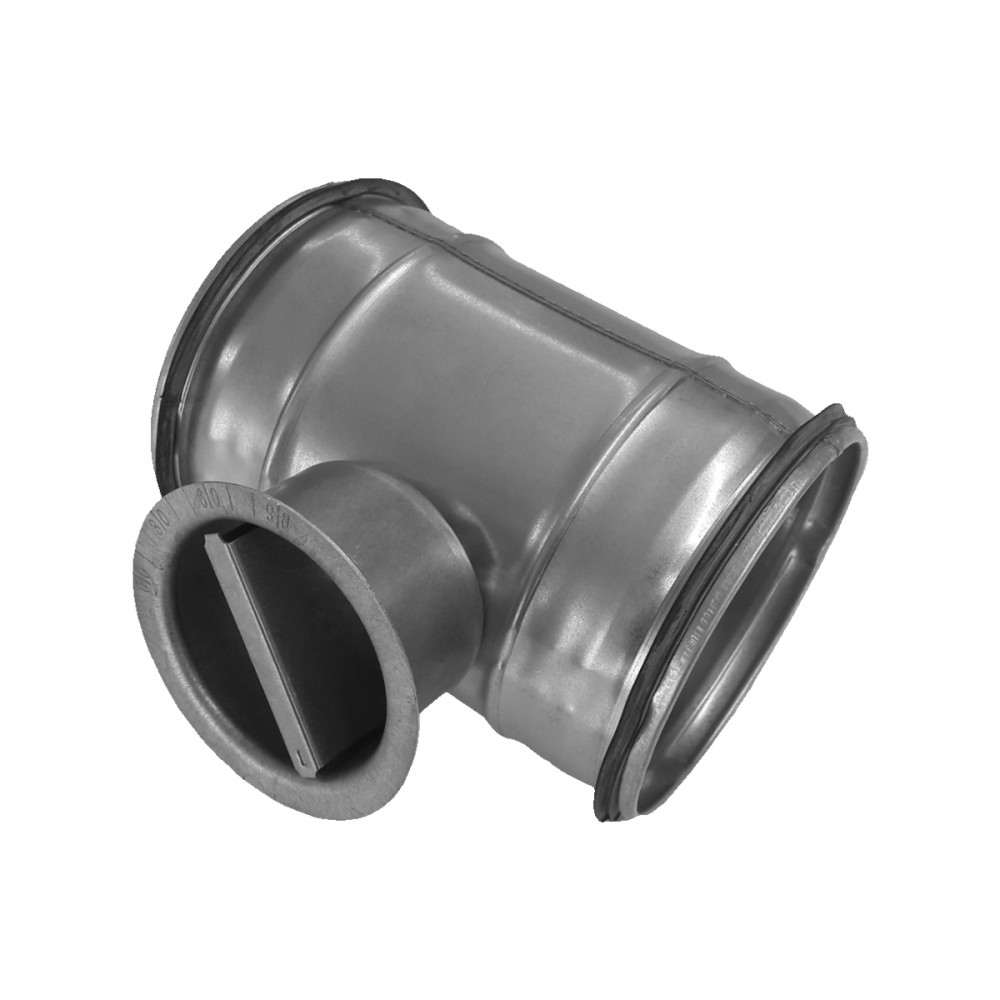

Circular volume control damper. DETAILS:
MATERIAL:
Galvanized steel. Dimensions
Isometric view
Isometric view
CHOICE AND SIZING
|
Mod. |
A1 [m2] |
v [m/s] |
Q [m3/h] |
Dp (ꭤ=40°) [Pa] |
LWA (ꭤ=40°) [dB(A)] |
||||
|
min |
max |
min |
max |
min |
max |
min |
max |
||
|
DBC80 |
0,0050 |
3 |
6 |
50 |
110 |
51 |
205 |
41 |
58 |
|
DBC100 |
0,0079 |
3 |
6 |
80 |
170 |
51 |
205 |
42 |
58 |
|
DBC125 |
0,0123 |
3 |
6 |
130 |
270 |
51 |
205 |
43 |
58 |
|
DBC150 |
0,0177 |
3 |
6 |
190 |
380 |
51 |
205 |
44 |
58 |
|
DBC160 |
0,0201 |
3 |
6 |
220 |
430 |
51 |
205 |
44 |
58 |
|
DBC180 |
0,0254 |
3 |
6 |
270 |
550 |
51 |
205 |
45 |
58 |
|
DBC200 |
0,0314 |
3 |
6 |
340 |
680 |
51 |
205 |
45 |
61 |
|
DBC224 |
0,0394 |
3 |
6 |
430 |
850 |
51 |
205 |
45 |
61 |
|
DBC250 |
0,0491 |
3 |
6 |
530 |
1060 |
51 |
205 |
46 |
61 |
|
DBC300 |
0,0707 |
3 |
6 |
760 |
1530 |
51 |
205 |
47 |
61 |
|
DBC315 |
0,0779 |
3 |
6 |
840 |
1680 |
51 |
205 |
47 |
61 |
|
DBC355 |
0,0990 |
3 |
6 |
1070 |
2140 |
51 |
205 |
47 |
61 |
|
DBC400 |
0,1257 |
3 |
6 |
1360 |
2710 |
51 |
205 |
48 |
62 |
|
DBC450 |
0,1590 |
3 |
6 |
1720 |
3440 |
51 |
205 |
48 |
62 |
|
DBC500 |
0,1963 |
3 |
6 |
2120 |
4240 |
51 |
205 |
49 |
62 |
Specifications text
DBCC
CIRCULAR CALIBRATION DAMPER IN GALVANISED STEEL, MANUAL CONTROL
DBCP
CIRCULAR CALIBRATION DAMPER IN GALVANISED STEEL.PREPARED FOR SERVOMOTOR
CIRCULAR CALIBRATION DAMPER IN GALVANISED STEEL, MANUAL CONTROL
DBCP
CIRCULAR CALIBRATION DAMPER IN GALVANISED STEEL.PREPARED FOR SERVOMOTOR
