BFLEX

CHARACTERISTICS:

The rubber insulation sheets B-FLEX 1500 mm in height are ideal for sheet metal ducts and pipes of large diameters as reducing the segmentation of the lining and simplifying installation, greatly limit time and labor costs.

Specifications text

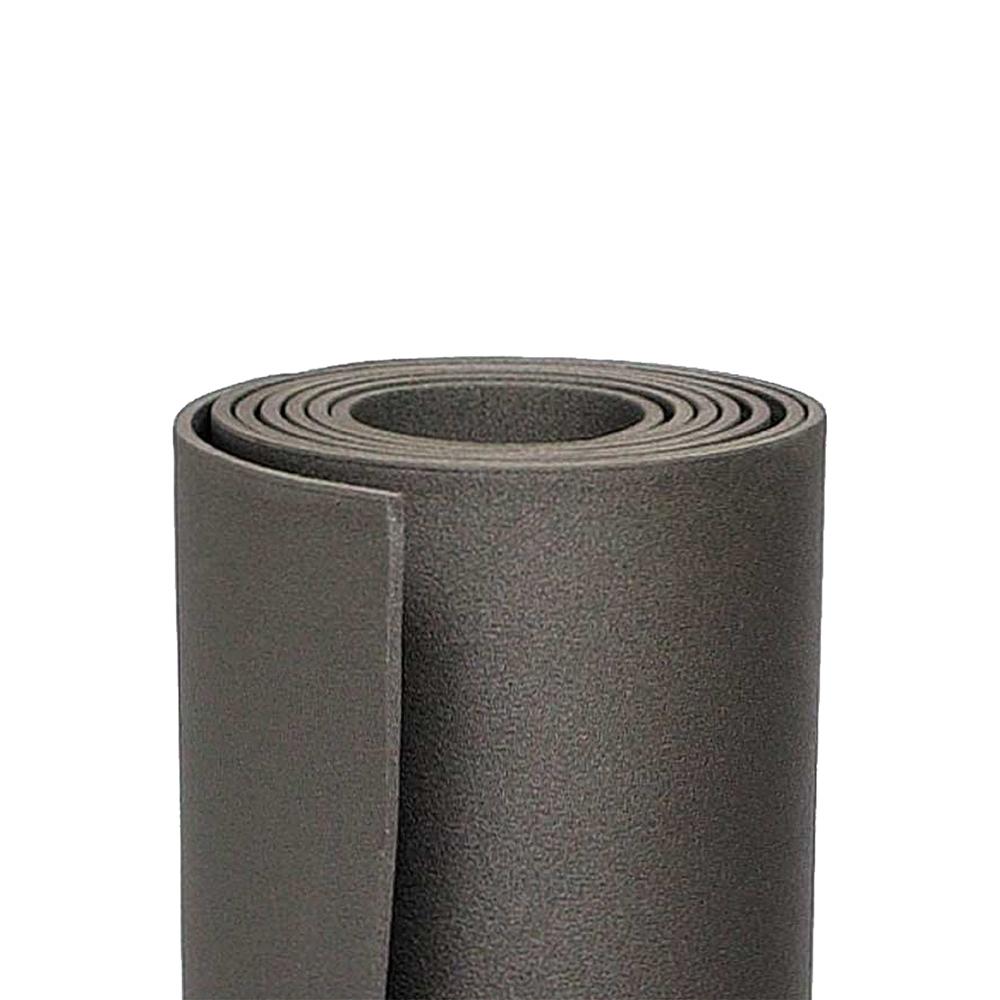

RUBBER INSULATING ROLL

MATERIAL:
1500-mm-high insulating rubber rolls are ideal for sheet metal ducts and pipes of large diameters as, by reducing the segmentation of the coating and simplifying installation, they considerably limit time and labour costs.
TECHNICAL SPECIFICATIONS:
LIMITS OF USE: Temperature range -40 °C max +110 °C
FIRE CLASS: Euroclass B, s3, d0 EN 13501-1
Thermal conductivity: λW/(mK) EN 12667 (DIN 52612) ENISO 8497 (DIN 52613):
• Thickness <25 mm:-20 °C = 0.031 ÷ 0 °C = 0.033 ÷ +20 °C = 0.035 ÷ +40 °C = 0.037
• Thickness >25 mm:-20 °C = 0.034 ÷ 0 °C = 0.036 ÷ +20 °C = 0.038 ÷ +40 °C = 0.040
