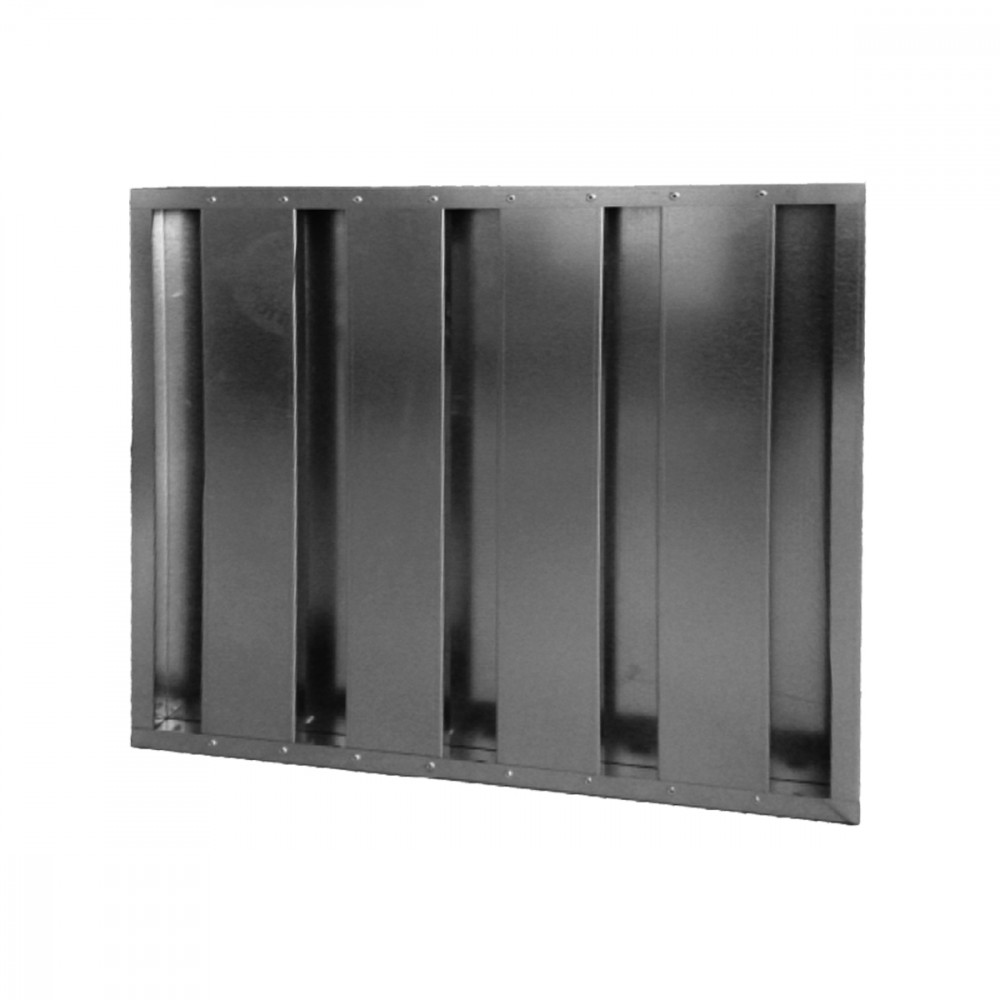

SPG

CHARACTERISTICS:

Sand-proof grilles for air intake in dusty environments.

CONSTRUCTION:

Frame provided at the bottom of holes for the discharge of the sand and two rows of C fins placed vertically in opposition. Construction in galvanized sheet metal, stainless steel, aluminium or other material on request.

UTILIZATION:

Air intake and the first stage of coarse filtration using the principle of inertial separation. Maximum operating temperature 200 ° C, operating pressure up to 1000 pa.

FIXING:

By means of self-tapping screws on the frame or on request with brackets to wall.

Dimensions

SPG

1= Drain holes sand

Specifications text

DUST-PROOF GRILLE FOR AIR INTAKE IN PARTICULARLY DUSTY ENVIRONMENTS

CONSTRUCTION:
Frame equipped in the lower part with holes for dust discharge and double row of C-shaped vertical opposed blades. Construction in galvanised sheet metal, stainless steel, aluminium or other material on request.
USE:
Air intake and coarse filtration first stage using the principle of inertial separation.Maximum operating temperature 200 °C, maximum operating pressure 1000 pa.
INSTALLATION:
By means of self-drilling screws on the frame or on request with brackets for wall mounting.
MODEL: SPG *** x *** (Width x Height mm)
