LAFXS10
"1 = Hole dimension
2 = Particular fixing hole
3 = Fixing hole
LAFXS10: Fixed horizontal bar grille deflection 0°
LAFXS15: Fixed horizontal bar grille deflection 15°"
Products
GRILLES

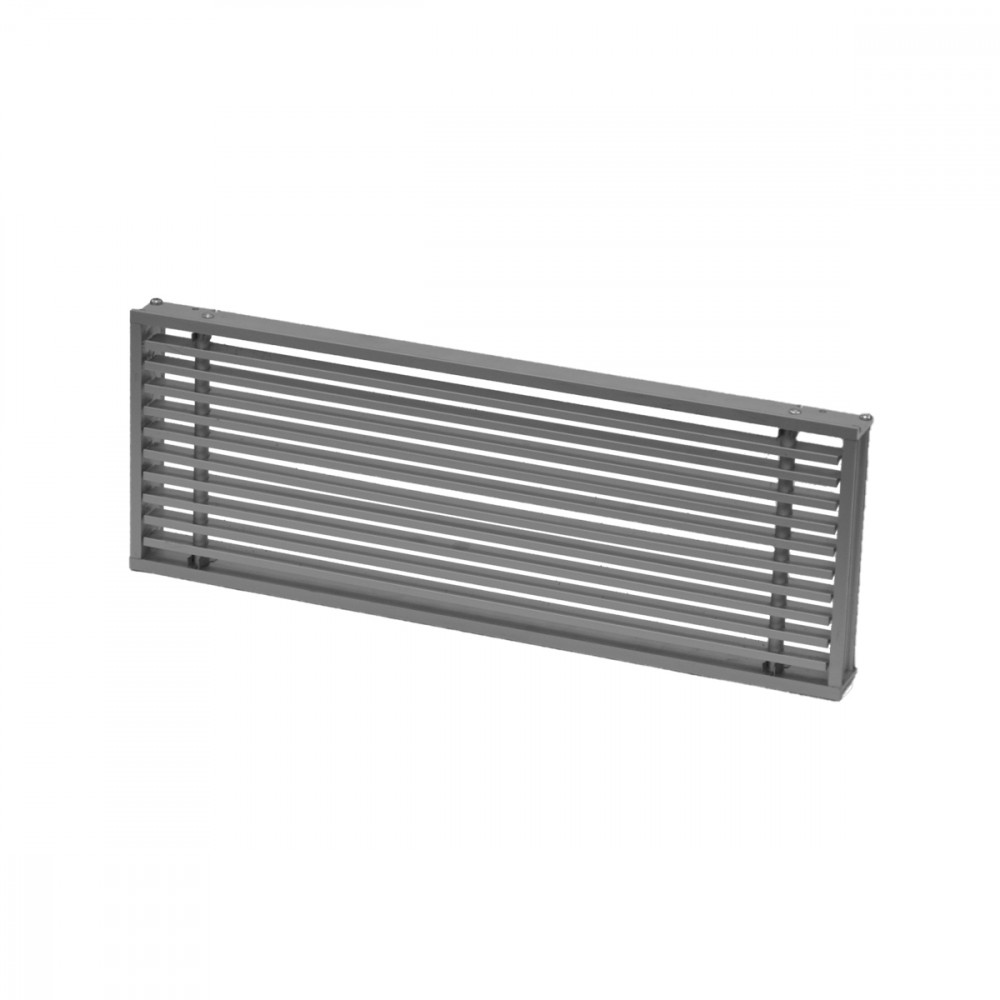

LAFXS
CHARACTERISTICS:
Grilles with fixed blades with 0° or 15° deflection with 7 mm frame. CONSTRUCTION:
Anodized aluminium. UTILIZATION:
For wall and fan-coils installation, and for air intake and delivery.
Installation height: 2,5 - 3,1 m.
FIXING:
• Fixing by using screws on frame. Dimensions
CHOICE AND SIZING
|
Mod. |
Ak [m2] |
Q [m3/h] |
LWA [dB(A)] |
X(0,25) [m] |
Dpt [Pa] |
||||
|
min |
max |
min |
max |
min |
max |
min |
max |
||
|
LAFXS 400x75 |
0,0083 |
80 |
160 |
20 |
34 |
3,5 |
6,6 |
5 |
20 |
|
LAFXS 500x75 |
0,0129 |
120 |
240 |
22 |
35 |
4,2 |
8 |
5 |
20 |
|
LAFXS 600x75 |
0,0176 |
160 |
330 |
23 |
37 |
4,8 |
9,4 |
5 |
20 |
|
LAFXS 800x75 |
0,0268 |
250 |
500 |
26 |
39 |
6,1 |
11,7 |
5 |
20 |
|
LAFXS 1000x75 |
0,0361 |
330 |
680 |
27 |
41 |
6,9 |
13,8 |
5 |
20 |
|
LAFXS 1200x75 |
0,0453 |
420 |
850 |
29 |
42 |
7,9 |
15,5 |
5 |
20 |
|
LAFXS 200x100 |
0,0021 |
50 |
100 |
20 |
31 |
1,9 |
3,3 |
5 |
20 |
|
LAFXS 300x100 |
0,0083 |
80 |
160 |
20 |
34 |
3,5 |
6,6 |
5 |
20 |
|
LAFXS 400x100 |
0,0145 |
130 |
270 |
22 |
36 |
4,3 |
8,5 |
5 |
20 |
|
LAFXS 500x100 |
0,0206 |
190 |
390 |
24 |
38 |
5,3 |
10,3 |
5 |
20 |
|
LAFXS 600x100 |
0,0268 |
250 |
500 |
26 |
39 |
6,1 |
11,7 |
5 |
20 |
|
LAFXS 800x100 |
0,0392 |
360 |
730 |
28 |
41 |
7,3 |
14,2 |
5 |
20 |
|
LAFXS 1000x100 |
0,0515 |
470 |
970 |
29 |
43 |
8,3 |
16,6 |
5 |
20 |
|
LAFXS 1200x100 |
0,0638 |
590 |
1200 |
31 |
44 |
9,4 |
18,6 |
5 |
20 |
|
LAFXS 400x125 |
0,0206 |
190 |
390 |
24 |
38 |
5,3 |
10,3 |
5 |
20 |
|
LAFXS 500x125 |
0,0284 |
260 |
530 |
26 |
40 |
6,1 |
12,1 |
5 |
20 |
|
LAFXS 600x125 |
0,0361 |
330 |
680 |
27 |
41 |
6,9 |
13,8 |
5 |
20 |
|
LAFXS 800x125 |
0,0515 |
470 |
970 |
29 |
43 |
8,3 |
16,6 |
5 |
20 |
|
LAFXS 1000x125 |
0,0669 |
610 |
1250 |
31 |
45 |
9,5 |
19 |
5 |
20 |
|
LAFXS 1200x125 |
0,0823 |
760 |
1540 |
32 |
46 |
10,7 |
21,2 |
5 |
20 |
|
LAFXS 300x150 |
0,0176 |
160 |
330 |
23 |
37 |
4,8 |
9,4 |
5 |
20 |
|
LAFXS 400x150 |
0,0268 |
250 |
500 |
26 |
39 |
6,1 |
11,7 |
5 |
20 |
|
LAFXS 500x150 |
0,0361 |
330 |
680 |
27 |
41 |
6,9 |
13,8 |
5 |
20 |
|
LAFXS 600x150 |
0,0453 |
420 |
850 |
29 |
42 |
7,9 |
15,5 |
5 |
20 |
|
LAFXS 800x150 |
0,0638 |
590 |
1200 |
31 |
44 |
9,4 |
18,6 |
5 |
20 |
|
LAFXS 1000x150 |
0,0823 |
760 |
1540 |
32 |
46 |
10,7 |
21,2 |
5 |
20 |
|
LAFXS 1200x150 |
0,1008 |
930 |
1890 |
33 |
47 |
11,9 |
23,7 |
5 |
20 |
|
LAFXS 300x200 |
0,0268 |
250 |
500 |
26 |
39 |
6,1 |
11,7 |
5 |
20 |
|
LAFXS 400x200 |
0,0392 |
360 |
730 |
28 |
41 |
7,3 |
14,2 |
5 |
20 |
|
LAFXS 500x200 |
0,0515 |
470 |
970 |
29 |
43 |
8,3 |
16,6 |
5 |
20 |
|
LAFXS 600x200 |
0,0638 |
590 |
1200 |
31 |
44 |
9,4 |
18,6 |
5 |
20 |
|
LAFXS 800x200 |
0,0885 |
810 |
1660 |
32 |
46 |
11 |
22,1 |
5 |
20 |
|
LAFXS 1000x200 |
0,1132 |
1040 |
2120 |
34 |
47 |
12,6 |
25,2 |
5 |
20 |
|
LAFXS 1200x200 |
0,1379 |
1270 |
2590 |
35 |
49 |
14 |
28 |
5 |
20 |
|
LAFXS 400x300 |
0,0638 |
590 |
1200 |
31 |
44 |
9,4 |
18,6 |
5 |
20 |
|
LAFXS 500x300 |
0,0823 |
760 |
1540 |
32 |
46 |
10,7 |
21,2 |
5 |
20 |
|
LAFXS 600x300 |
0,1008 |
930 |
1890 |
33 |
47 |
11,9 |
23,7 |
5 |
20 |
|
LAFXS 800x300 |
0,1379 |
1270 |
2590 |
35 |
49 |
14 |
28 |
5 |
20 |
|
LAFXS 1000x300 |
0,1749 |
1610 |
3280 |
36 |
50 |
15,8 |
31,8 |
5 |
20 |
|
LAFXS 1200x300 |
0,2119 |
1950 |
3970 |
37 |
51 |
17,5 |
35,2 |
5 |
20 |
|
LAFXS 1000x400 |
0,2366 |
2170 |
4440 |
38 |
52 |
18,5 |
37,4 |
5 |
20 |
|
LAFXS 1200x400 |
0,2859 |
2630 |
5360 |
39 |
53 |
20,5 |
41,4 |
5 |
20 |
Accessories and configurations
PBZXS1
PBZXS2
PBZXSI1
Plenum externally insulated thickness 6 mm
PBZXSI2
Plenum externally insulated thickness 6 mm
1020
1= Bar profile
1525
1= Bar profile
Specifications text
ALUMINUM GRILLE WITH FIXED BLADES WITH 0° - 15° DEFLECTION WITH 7 MM FRAME
CONSTRUCTION:
Anodised aluminium.
USE:
On the wall or on fan-coils, on supply and return. Installation height:2.5 - 3.1 m
INSTALLATION:
• Fixing with screws on the frame.
ACCESSORIES:
• Volume control damper in galvanised steel with opposed blades.
MODEL: LAFXS**/*** x *** (Width x Height mm)
