GRILLES
GRPZ

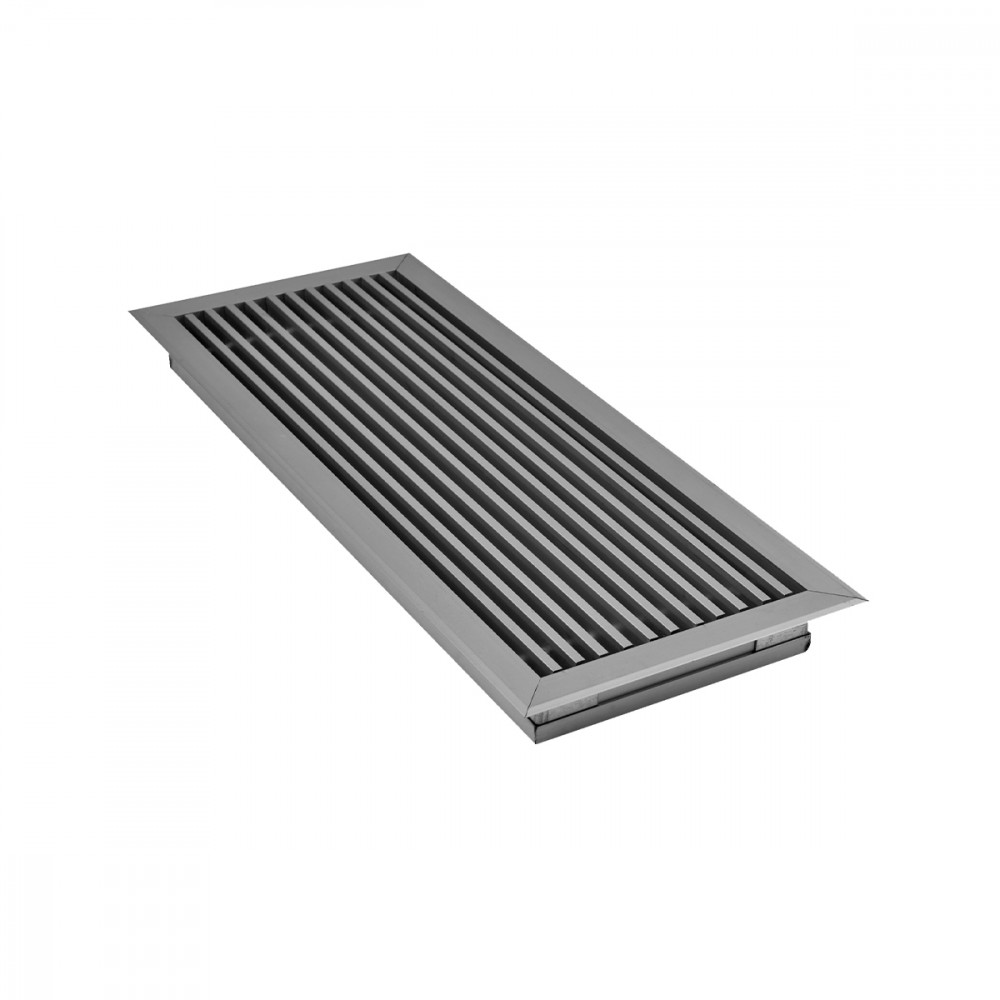

CHARACTERISTICS:
Floor grilles composed by horizontal fixed bars with 12,5 mm pitch, with frame. CONSTRUCTION:
Anodized aluminium. UTILIZATION:
For floor installation and for air intake or delivery. FIXING:
• Fixing by using screws. ACCESSORIES:
• Dust collection container.
• Calibration damper made of galvanized steel and fins with opposite movement.
Dimensions
1= Hole dimension
1= Particular housing bars on frame
1= Hole dimension
1= Particular housing damper on frame
CHOICE AND SIZING
|
Mod. |
Ak [m2] |
Q [m3/h] |
LWA [dB(A)] |
X(0,25) [m] |
Dpt [Pa] |
||||
|
min |
max |
min |
max |
min |
max |
min |
max |
||
|
GRPZ 300x100 |
0,0126 |
120 |
240 |
21 |
38 |
2,2 |
4,9 |
5 |
20 |
|
GRPZ 400x100 |
0,0172 |
160 |
330 |
22 |
40 |
2,6 |
5,9 |
5 |
20 |
|
GRPZ 500x100 |
0,0220 |
210 |
420 |
24 |
41 |
3,2 |
6,7 |
5 |
20 |
|
GRPZ 600x100 |
0,0268 |
250 |
510 |
25 |
42 |
3,5 |
7,4 |
5 |
20 |
|
GRPZ 800x100 |
0,0368 |
350 |
700 |
27 |
44 |
4,2 |
8,8 |
5 |
20 |
|
GRPZ 1000x100 |
0,0470 |
450 |
900 |
28 |
45 |
4,9 |
10 |
5 |
20 |
|
GRPZ 300x150 |
0,0196 |
190 |
370 |
24 |
40 |
3,1 |
6,3 |
5 |
20 |
|
GRPZ 400x150 |
0,0268 |
250 |
510 |
25 |
42 |
3,5 |
7,6 |
5 |
20 |
|
GRPZ 500x150 |
0,0343 |
320 |
650 |
26 |
43 |
4,1 |
8,6 |
5 |
20 |
|
GRPZ 600x150 |
0,0418 |
400 |
800 |
28 |
44 |
4,7 |
9,6 |
5 |
20 |
|
GRPZ 800x150 |
0,0573 |
540 |
1100 |
29 |
46 |
5,4 |
11,3 |
5 |
20 |
|
GRPZ 1000x150 |
0,0732 |
690 |
1400 |
30 |
47 |
6,2 |
12,7 |
5 |
20 |
|
GRPZ 400x200 |
0,0368 |
350 |
700 |
27 |
44 |
4,4 |
9,1 |
5 |
20 |
|
GRPZ 500x200 |
0,0470 |
450 |
900 |
28 |
45 |
5 |
10,3 |
5 |
20 |
|
GRPZ 600x200 |
0,0573 |
540 |
1100 |
29 |
46 |
5,5 |
11,4 |
5 |
20 |
|
GRPZ 800x200 |
0,0785 |
740 |
1500 |
30 |
48 |
6,5 |
13,3 |
5 |
20 |
|
GRPZ 1000x200 |
0,1003 |
950 |
1920 |
32 |
49 |
7,4 |
15,1 |
5 |
20 |
|
GRPZ 500x300 |
0,0732 |
690 |
1400 |
30 |
47 |
6,4 |
13,1 |
5 |
20 |
|
GRPZ 600x300 |
0,0893 |
850 |
1710 |
31 |
48 |
7,1 |
14,5 |
5 |
20 |
|
GRPZ 800x300 |
0,1224 |
1160 |
2340 |
33 |
50 |
8,3 |
16,9 |
5 |
20 |
|
GRPZ 1000x300 |
0,1563 |
1480 |
2990 |
34 |
51 |
9,4 |
19,1 |
5 |
20 |
|
GRPZ 600x400 |
0,1224 |
1160 |
2340 |
33 |
50 |
8,4 |
17,1 |
5 |
20 |
|
GRPZ 800x400 |
0,1677 |
1590 |
3200 |
34 |
51 |
9,8 |
20 |
5 |
20 |
|
GRPZ 1000x400 |
0,2141 |
2030 |
4090 |
36 |
53 |
11,1 |
22,5 |
5 |
20 |
Instructions
GRPZ
GRPZ
Specifications text
WALKABLE ALUMINUM FLOOR GRILLE WITH FIXED HORIZONTAL BARS 12.5 MM PITCH WITH FRAME
CONSTRUCTION:
Anodised aluminium.
USE:
On the floor, air supply or return.
INSTALLATION:
Fixing with screws
ACCESSORIES:
• CS: Dust collection basket.
• SCZ: Calibration damper in galvanised steel with opposed movement blades.
MODEL: GRPZ *** x *** (Width x Height mm)
