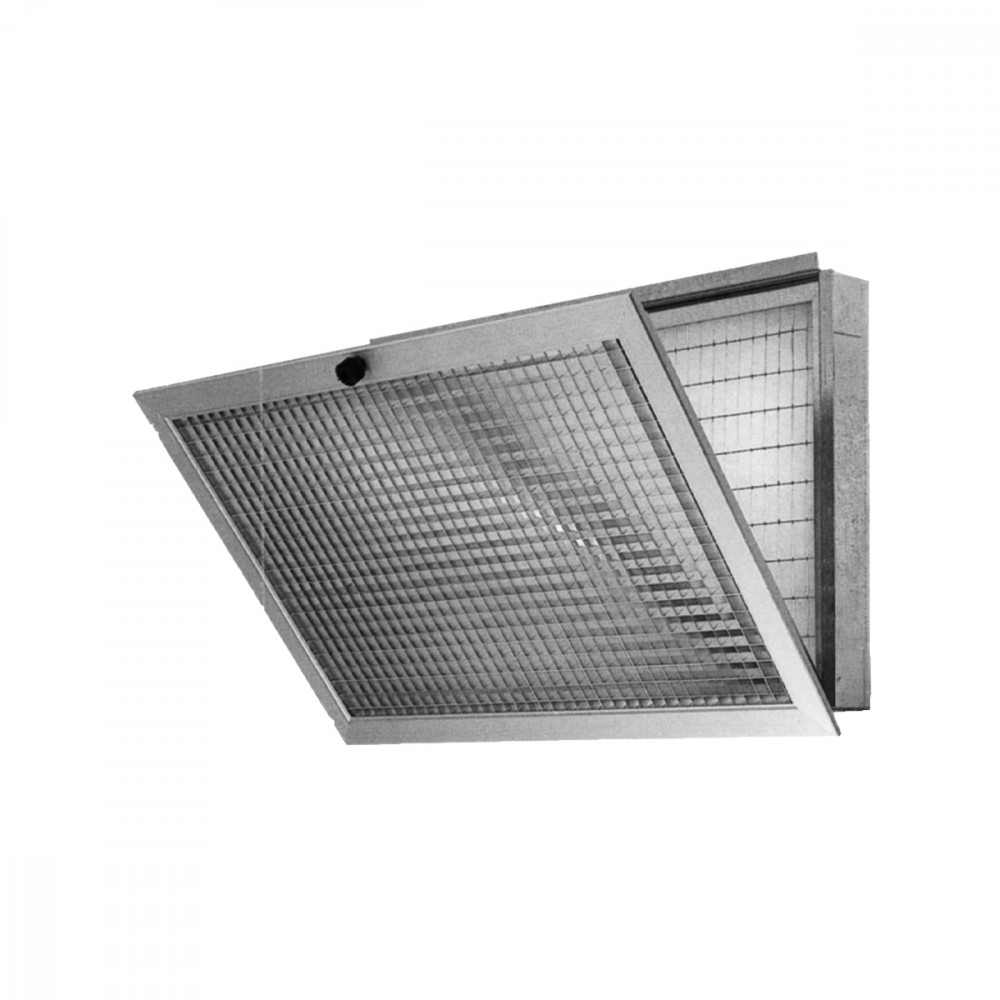

GMA3

CHARACTERISTICS:
Filter square-grid grilles 13x13 mm pitch, with hinged counterframe for filter insertion and replacement.
CONSTRUCTION:
Anodized aluminium. Counterframe made of galvanized steel.
UTILIZATION:
For wall installation and for air intake.
FIXING:
• Fixing by frontal screws, knobs or magnets.
Dimensions
CHOICE AND SIZING

Mod.

Ak [m2]

Q [m3/h]

LWA [dB(A)]

Dpt [Pa]

min

max

min

max

min

max

GMA n° 200x200

0,0227

50

190

-

23

10

50

GMA n° 300x200

0,0353

80

280

-

24

10

50

GMA n° 400x200

0,0478

110

380

-

26

10

50

GMA n° 500x200

0,0604

140

480

-

27

10

50

GMA n° 600x200

0,0730

170

570

-

28

10

50

GMA n° 800x200

0,0982

220

760

-

30

10

50

GMA n° 200x300

0,0352

80

280

-

24

10

50

GMA n° 300x300

0,0548

120

430

-

27

10

50

GMA n° 400x300

0,0744

170

580

-

28

10

50

GMA n° 500x300

0,0940

210

720

-

29

10

50

GMA n° 600x300

0,1136

250

870

-

30

10

50

GMA n° 800x300

0,1528

330

1160

-

32

10

50

GMA n° 200x400

0,0478

110

380

-

26

10

50

GMA n° 300x400

0,0744

170

580

-

28

10

50

GMA n° 400x400

0,1010

220

770

-

29

10

50

GMA n° 500x400

0,1276

280

970

-

31

10

50

GMA n° 600x400

0,1542

340

1160

-

32

10

50

GMA n° 800x400

0,2073

460

1560

-

33

10

50

GMA n° 200x500

0,0603

140

480

-

27

10

50

GMA n° 300x500

0,0939

210

720

-

29

10

50

GMA n° 400x500

0,1275

280

960

-

31

10

50

GMA n° 500x500

0,1611

350

1210

-

32

10

50

GMA n° 600x500

0,1947

420

1460

-

33

10

50

GMA n° 800x500

0,2619

560

1960

-

34

10

50

GMA n° 200x600

0,0729

160

570

-

28

10

50

GMA n° 300x600

0,1135

250

870

-

30

10

50

GMA n° 400x600

0,1541

340

1160

-

32

10

50

GMA n° 500x600

0,1947

430

1460

-

33

10

50

GMA n° 600x600

0,2353

510

1760

-

34

10

50

GMA n° 800x600

0,3165

690

2350

-

35

10

50

GMA n° 200x800

0,0980

220

760

-

30

10

50

GMA n° 300x800

0,1526

330

1160

-

32

10

50

GMA n° 400x800

0,2072

440

1560

-

33

10

50

GMA n° 500x800

0,2618

560

1960

-

34

10

50

GMA n° 600x800

0,3164

680

2350

-

35

10

50

GMA n° 800x800

0,4256

910

3150

-

37

10

50

Specifications text

SQUARE MESH ALUMINIUM FILTER GRILLE 13X13 MM WITH HINGED COUNTERFRAME FOR HOUSING AND REPLACEMENT OF THE FILTER.

CONSTRUCTION:
Anodised aluminium. Galvanised steel counterframe.
USE:
On the wall, for intake.
FILTER:
Included
INSTALLATION:
Fixing with visible screws, knobs and magnets.
MODEL: GMA3 *** x *** (Width x Height mm)
