MDF30EURO

• Drawings

MDF30EURO

MDF30EURO

MDF30EURO

MDF30EURO

MDF30EURO

Maximum size Base: 2480 mm (nr. 2 dampers base 1200 mm air passage) Heigth: 800 mm

MDF30EURO

MDF30EURO

MDF30EURO

The dampers for this particular installation are equipped with: • Factory-mounted thermo-expansion elements (this must be reported when ordering is in place). • KBTR Locking Bracket Kit (No. 4 Brackets and No 16 self-drilling screws) to be ordered together with the dampers. Necessary 1 kit for every couple of dampers to install side by side. • KS3 fixing bracket kit (4 brackets) to be ordered together with the dampers. Necessary 1 kit for every couple of dampers to install side by side.

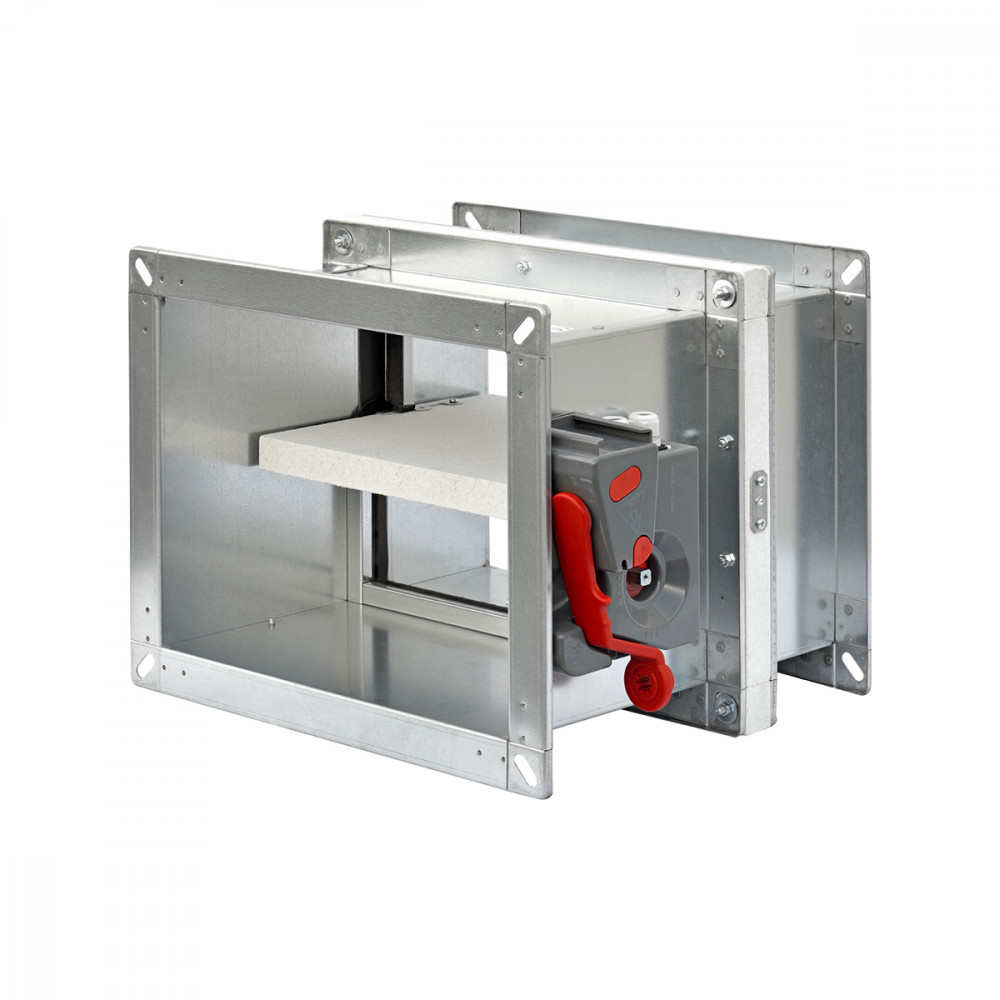

RECTANGULAR FIRE DAMPER CE MARKED AND UNI EN 15650 CERTIFIED

FEATURES:
Damper that can be installed on ventilation ducts, ensuring rapid interruption of the air flow in the event of fire. Operated with electromagnet or thermal fuse with mechanical reset. Classification according to UNI EN 13501-3 and tested according to UNI EN 1366/2.
CONSTRUCTION:
Double casing in very thick galvanised steel with intermediate thermal cut in calcium silicate. Calcium silicate blade moved on steel rotary pins housed on brass bushings. Equipped with an external flange for connection to the ducts and a thermal release device calibrated as standard at 72 °C. (optional 95°)
OPERATING CONDITIONS:
Clean air, maximum speed 10 m/s.
MODEL: MDF30EURO
SIZES: *****
CLASSIFICATION: EI120S for installation on Wall, Light Wall, Slab

MDF30EURO BATTERY

BATTERY SIDE BY SIDE INSTALLATION RECTANGULAR FIRE DAMPER CE MARKED AND UNI EN 15650 CERTIFIED

FEATURES:
Damper that can be installed on ventilation ducts, ensuring rapid interruption of the air flow in the event of fire. Operated with electromagnet, thermal fuse with mechanical reset or servomotor. Classification according to UNI EN 13501-3 and tested according to UNI EN 1366/2.
CONSTRUCTION:
Double casing in very thick galvanised steel with intermediate thermal cut in calcium silicate. Calcium silicate blade moved on steel rotary pins housed on brass bushings. Equipped with an external flange for connection to the ducts and a thermal release device calibrated as standard at 72 °C. (optional 95°)
OPERATING CONDITIONS:
Clean air, maximum speed 10 m/s.
Dampers for this particular installation are equipped with:
- thermo-expanding elements fitted in the factory (it is necessary to indicate this installation method when ordering);
- KBTR clamping bracket kit (no. 4 brackets and no. 16 self-drilling screws) to be ordered together with the dampers. 1 kit is required for each pair of side-by-side dampers;
- KS3 wall fixing bracket kit (no. 4 brackets) to be ordered together with the dampers. 1 kit is required for each pair of side-by-side dampers.
MODEL: MDF30EURO BATTERY
SIZES: *****
CLASSIFICATION: EI120S for installation on Wall, Light Wall, Slab
