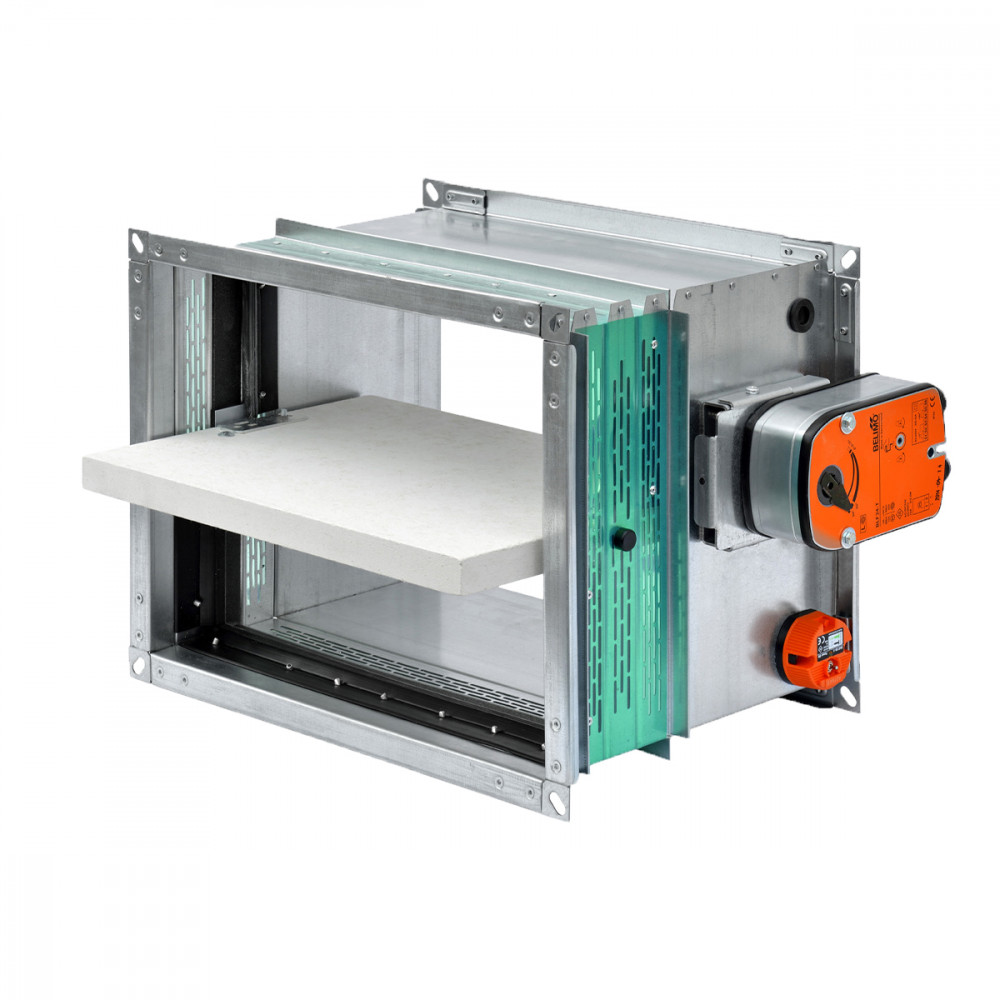

MDF25LM

CHARACTERISTICS:

Fire dampers marked CE certified UNI EN 15650, UNI EN 13501-3 classified and tested according to UNI EN 1366/2. Installable on ventilation ducts ensure a rapid interruption of the air flow in case of fire. Moved by servomotor.

CONSTRUCTION:

Casing in galvanized steel with intermediate thermal cut. Blade in calcium silicate moved on pivots steel rotation housed on brass bushings. Provided with outer flange for connection to ducts have thermal release device calibrated standard at 72 ° C.

DETAILS:

Operating conditions: Clean air, maximum air speed 10 m/s.

Dimensions

MDF25LM

Specifications text

RECTANGULAR FIRE DAMPER CE MARKED AND UNI EN 15650 CERTIFIED

FEATURES:
Damper that can be installed on ventilation ducts, ensuring rapid interruption of the air flow in the event of fire. Operated with servomotor. Classification according to UNI EN 13501-3 and tested according to UNI EN 1366/2.
CONSTRUCTION:
Galvanised steel casing with intermediate thermal cut. Calcium silicate blade moved on steel rotary pins housed on brass bushings. Equipped with an external flange for connection to the ducts and a thermal release device calibrated as standard at 72 °C. (optional 95°)
OPERATING CONDITIONS:
Clean air, maximum speed 10 m/s.
MODEL: MDF25L-M
SIZES: *****
CLASSIFICATION: EI120S for installation on Wall, Light Wall, Slab
