SRA10050
Products
FILTERS AND SILENCERS
SRA10050
CHARACTERISTICS:

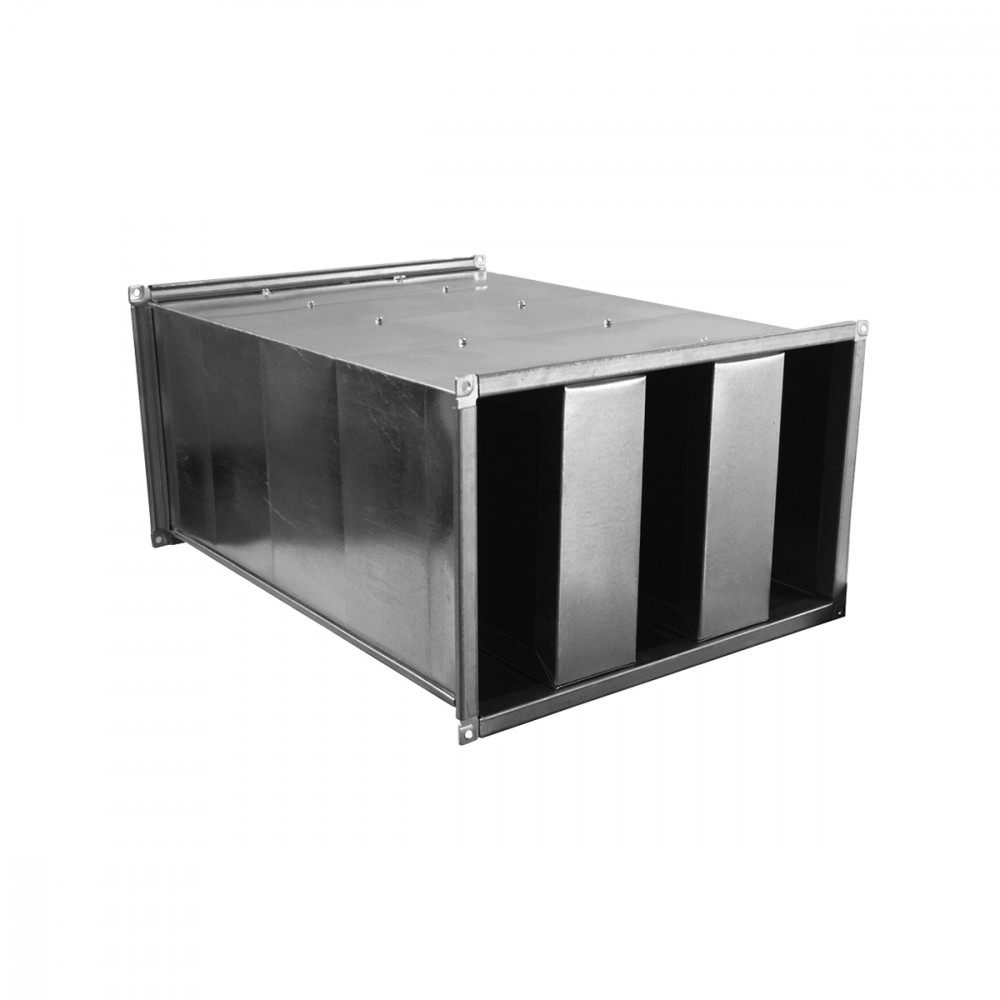

Rectangular sound attenuator. Material:
Casing in galvanized steel.
Splitter in mineral wool 60 kg/mc.
30 mm flange profile for sound attenuator with a perimeter <6 m.
40 mm flange profile for sound attenuator with a perimeter> 6 m.
Splitters: 100 mm.
Airflows: 50 mm.
Dimensions
Specifications text
RECTANGULAR GALVANISED STEEL SOUND ATTENUATOR WITH SOUND ABSORBING SPLITTERS
MATERIAL:
Casing in galvanised steel.60 kg/m3 mineral wool insulation.
DIMENSIONS:
20 mm flange profile with longer side up to 1,000 mm.
30 mm flange profile with longer side from 1,001, up to 2,000 mm.
40 mm flange profile with longer side over 2,001 mm.
100 mm splitter thickness50 mm air flow thickness.- (with mesh/without mesh)
LENGTH (mm) = ***
ATTENUATION (HZ):*****
