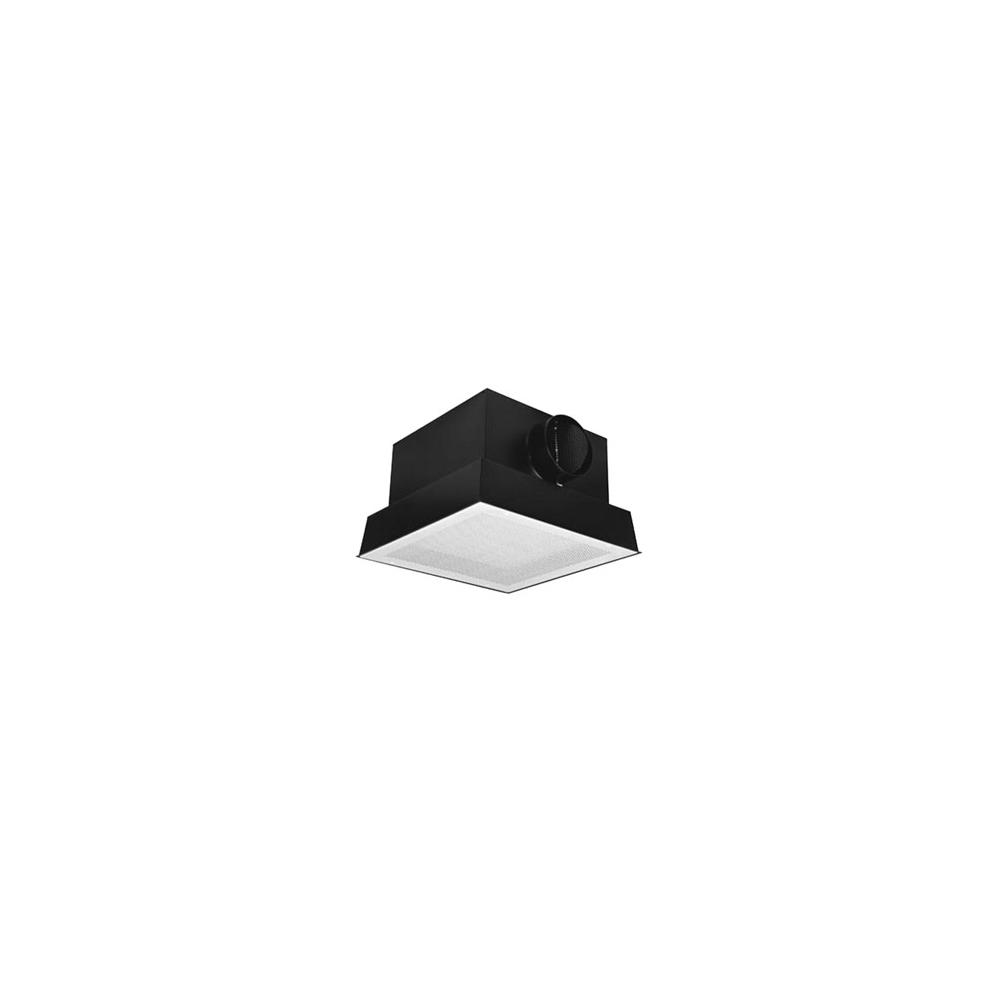

PFA

CHARACTERISTICS:

HEPA filter plenum with distribution with low turbulence. Including damper excluded diffuser.

CONSTRUCTION:

Thick steel plenum with paint finishing using antimicrobial RAL 9005 unleaded for ensuring greater resistance to ultraviolet rays. Filter easy to remove with standard height 68 mm aluminium frame. Polyurethane sealing gasket in one piece. Equipped as standard with pressure taps. Tightness class D according to UNI-EN 12237 and EN 1507.

UTILIZATION:

Ceiling in controlled contamination environments.

DETAILS:

Variant: • Stainless steel construction 304-316.

Dimensions

PFA

PFAB

Specifications text

HEPA FILTER PLENUM WITH LOW TURBULENCE DISTRIBUTION, COMPLETE WITH DAMPER ON THE OUTLET AND DIFFUSER EXCLUDED

CONSTRUCTION:
Plenum in very thick steel sheet with finish using lead-free antimicrobial paint RAL 9005 to guarantee greater resistance to ultraviolet rays.
Easy extraction filter height 68 mm standard with aluminium frame.
Polyurethane seal in one piece.
Equipped as standard with pressure taps
TIGHTNESS CLASS:
D according to UNI-EN 12237 and EN 1507.
USE:
Ceiling mounted in controlled contamination environments.
VARIATIONS:
• Construction in AISI 304-316 stainless steel.
FILTER EFFICIENCY: (H13/H14)
DIFFUSER TYPE: (BQF, BQE, AQ)
CONNECTION POSITION: (PFA/PFAB)
