PESP

CHARACTERISTICS:

Plenum swirl diffuser on panel.

CONSTRUCTION:

Polystyrene printed density 45 kg / mc, flame retardant class 1 and crystallized on the inside.

FIXING:

Attaching the diffuser of the plenum through the screw “V” on the bar “A”.

ACCESSORIES:

• Damper
• Equalizer

DETAILS:

Executions: Plenum mounted in the standard version, or with mounting kit without spigot.

Dimensions

PESP

Material supplied loose to be assembled on site

Specifications text

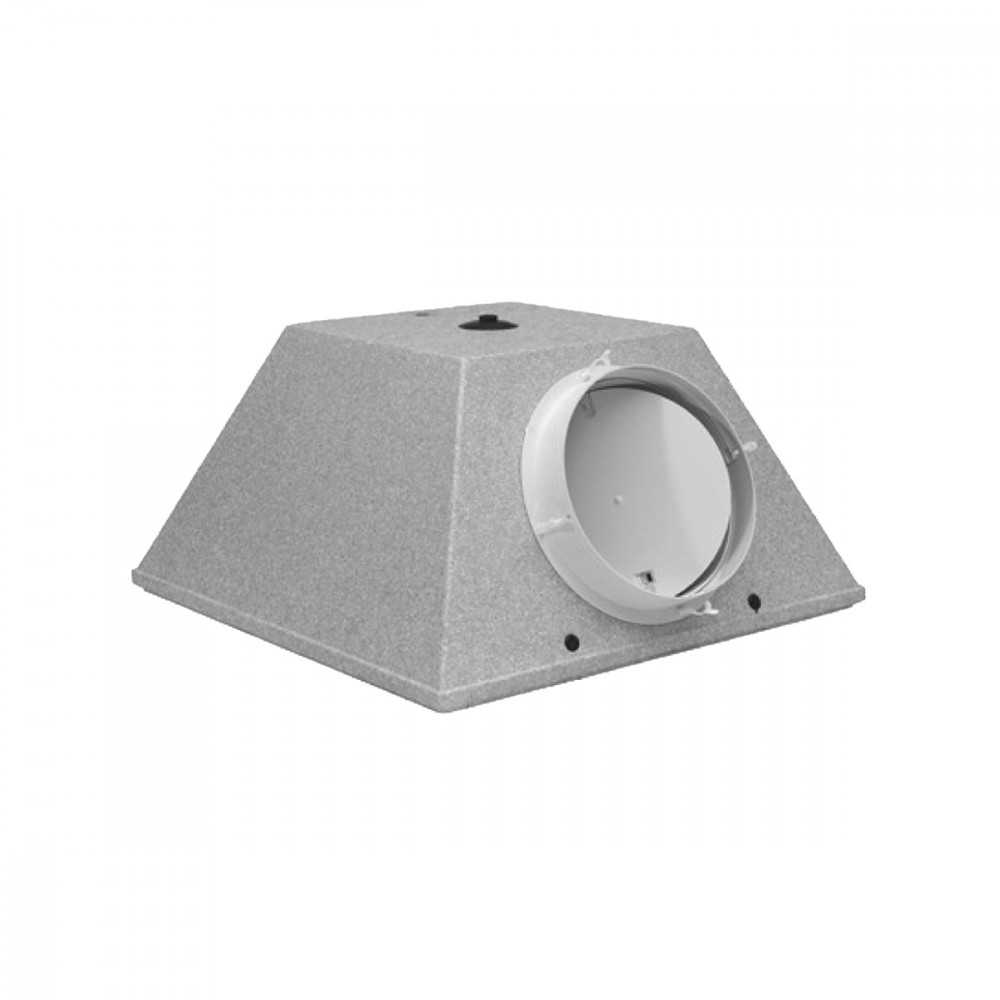

POLYSTYRENE PYRAMID PLENUM FOR DIFFUSER ON PANEL 595x595 MM

CONSTRUCTION:
Moulded polystyrene density 45 kg/m3, fire retardant class 1 and crystallised on the inside.
INSTALLATION:
Fixing to the plenum diffuser by means of screw "V" to bar "A".
VERSIONS:
Plenum mounted in standard version or with assembly kit without fitting.
ACCESSORIES:
Damper, equaliser.

PAIRING WITH MODELS:
BQFC60, BQF60SM, BQE, BQM, DIC, BQS, BQSN, DMTN, DMQN, GMA60, GMAI60, GMA60SMF, GMAI60SMF
