GUR

1= Hole dimension
Mod. |
Q [m3/h] |
LWA [dB(A)] |
X(0,25) -Y(0,25) [m] |
Dpt [Pa] |
||||
min |
max |
min |
max |
min |
max |
min |
max |
|
200x100 |
5 |
25 |
21 |
29 |
1,7 |
6,7 |
5 |
55 |
300x100 |
10 |
40 |
21 |
29 |
1,7 |
6,7 |
5 |
55 |
400x100 |
15 |
55 |
21 |
29 |
1,7 |
6,7 |
5 |
55 |
500x100 |
20 |
70 |
21 |
29 |
1,7 |
6,7 |
5 |
55 |
600x100 |
25 |
85 |
21 |
29 |
1,7 |
6,7 |
5 |
55 |
700x100 |
30 |
100 |
21 |
29 |
1,7 |
6,7 |
5 |
55 |
800x100 |
35 |
115 |
21 |
29 |
1,7 |
6,7 |
5 |
55 |
1000x100 |
45 |
145 |
21 |
29 |
1,7 |
6,7 |
5 |
55 |
1200x100 |
55 |
175 |
21 |
29 |
1,7 |
6,7 |
5 |
55 |
300x150 |
25 |
75 |
23 |
32 |
1,9 |
6,9 |
5 |
55 |
400x150 |
30 |
110 |
23 |
32 |
1,9 |
6,9 |
5 |
55 |
500x150 |
40 |
140 |
23 |
32 |
1,9 |
6,9 |
5 |
55 |
600x150 |
50 |
170 |
23 |
32 |
1,9 |
6,9 |
5 |
55 |
700x150 |
60 |
200 |
23 |
32 |
1,9 |
6,9 |
5 |
55 |
800x150 |
70 |
230 |
23 |
32 |
1,9 |
6,9 |
5 |
55 |
1000x150 |
90 |
290 |
23 |
32 |
1,9 |
6,9 |
5 |
55 |
1200x150 |
105 |
355 |
23 |
32 |
1,9 |
6,9 |
5 |
55 |
300x200 |
35 |
115 |
25 |
34 |
2,1 |
7,3 |
5 |
55 |
400x200 |
50 |
160 |
25 |
34 |
2,1 |
7,3 |
5 |
55 |
500x200 |
60 |
205 |
25 |
34 |
2,1 |
7,3 |
5 |
55 |
600x200 |
75 |
255 |
25 |
34 |
2,1 |
7,3 |
5 |
55 |
700x200 |
90 |
300 |
25 |
34 |
2,1 |
7,3 |
5 |
55 |
800x200 |
105 |
345 |
25 |
34 |
2,1 |
7,3 |
5 |
55 |
1000x200 |
130 |
440 |
25 |
34 |
2,1 |
7,3 |
5 |
55 |
1200x200 |
160 |
530 |
25 |
34 |
2,1 |
7,3 |
5 |
55 |
400x250 |
65 |
215 |
27 |
36 |
2,4 |
7,7 |
5 |
55 |
500x250 |
85 |
275 |
27 |
36 |
2,4 |
7,7 |
5 |
55 |
600x250 |
100 |
340 |
27 |
36 |
2,4 |
7,7 |
5 |
55 |
700x250 |
120 |
400 |
27 |
36 |
2,4 |
7,7 |
5 |
55 |
800x250 |
140 |
460 |
27 |
36 |
2,4 |
7,7 |
5 |
55 |
1000x250 |
175 |
585 |
27 |
36 |
2,4 |
7,7 |
5 |
55 |
1200x250 |
210 |
705 |
27 |
36 |
2,4 |
7,7 |
5 |
55 |
500x300 |
105 |
345 |
29 |
38 |
2,6 |
7,9 |
5 |
55 |
600x300 |
125 |
425 |
29 |
38 |
2,6 |
7,9 |
5 |
55 |
700x300 |
150 |
500 |
29 |
38 |
2,6 |
7,9 |
5 |
55 |
800x300 |
175 |
575 |
29 |
38 |
2,6 |
7,9 |
5 |
55 |
1000x300 |
220 |
730 |
29 |
38 |
2,6 |
7,9 |
5 |
55 |
1200x300 |
265 |
885 |
29 |
38 |
2,6 |
7,9 |
5 |
55 |
Plenum externally insulated thickness 6 mm
Plenum externally insulated thickness 6 mm

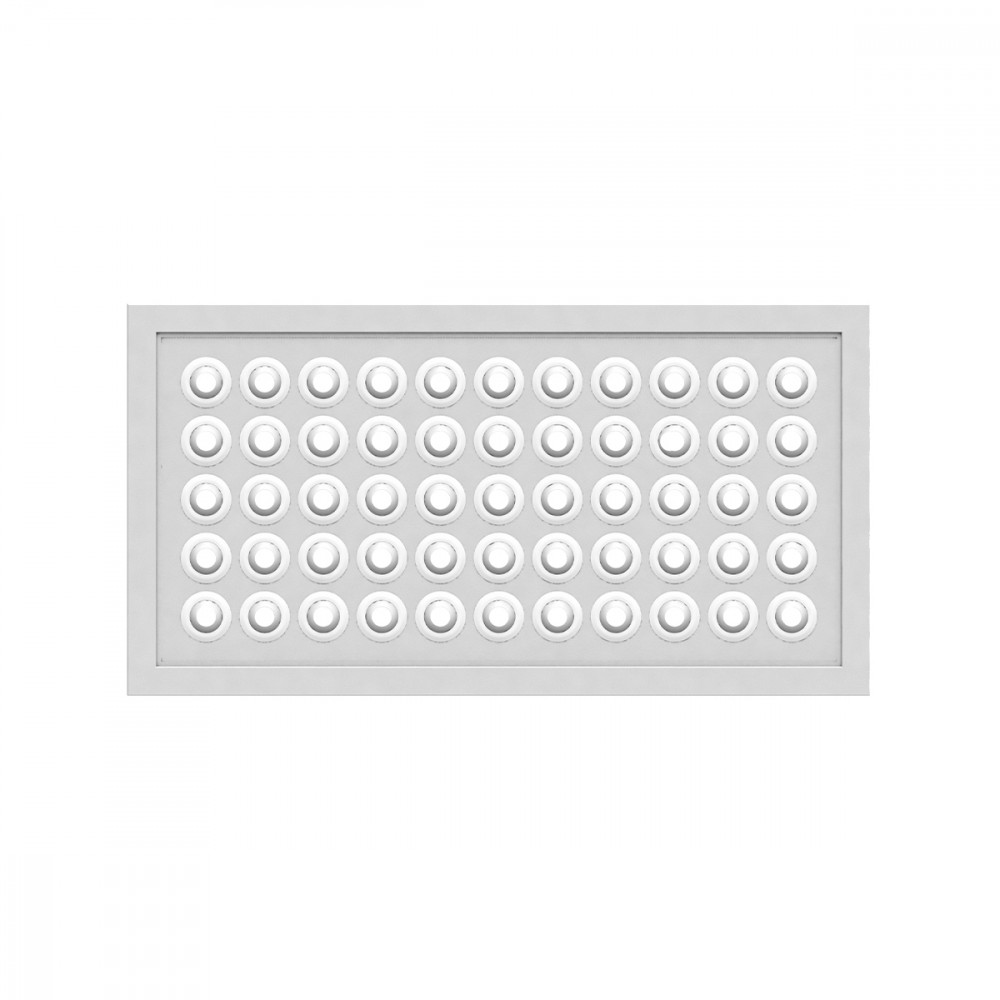

DIFFUSER IN ALUMINIUM/GALVANISED STEEL RAL 9010 WITH ADJUSTABLE MICRO NOZZLES.
CONSTRUCTION:
Material: Steel plate, aluminium frame, white nylon nozzles.
FINISH: RAL 9010
INSTALLATION:
Installation with screws (standard), clips
ACCESSORIES:
• Standard or insulated galvanised steel plenum.
• Volume control damper in galvanised steel with opposed blades.
• Mounting counter-frame in galvanised steel sheet.
MODEL: GUR
SIZES: *** x *** mm.
