DLFP

CHARACTERISTICS:

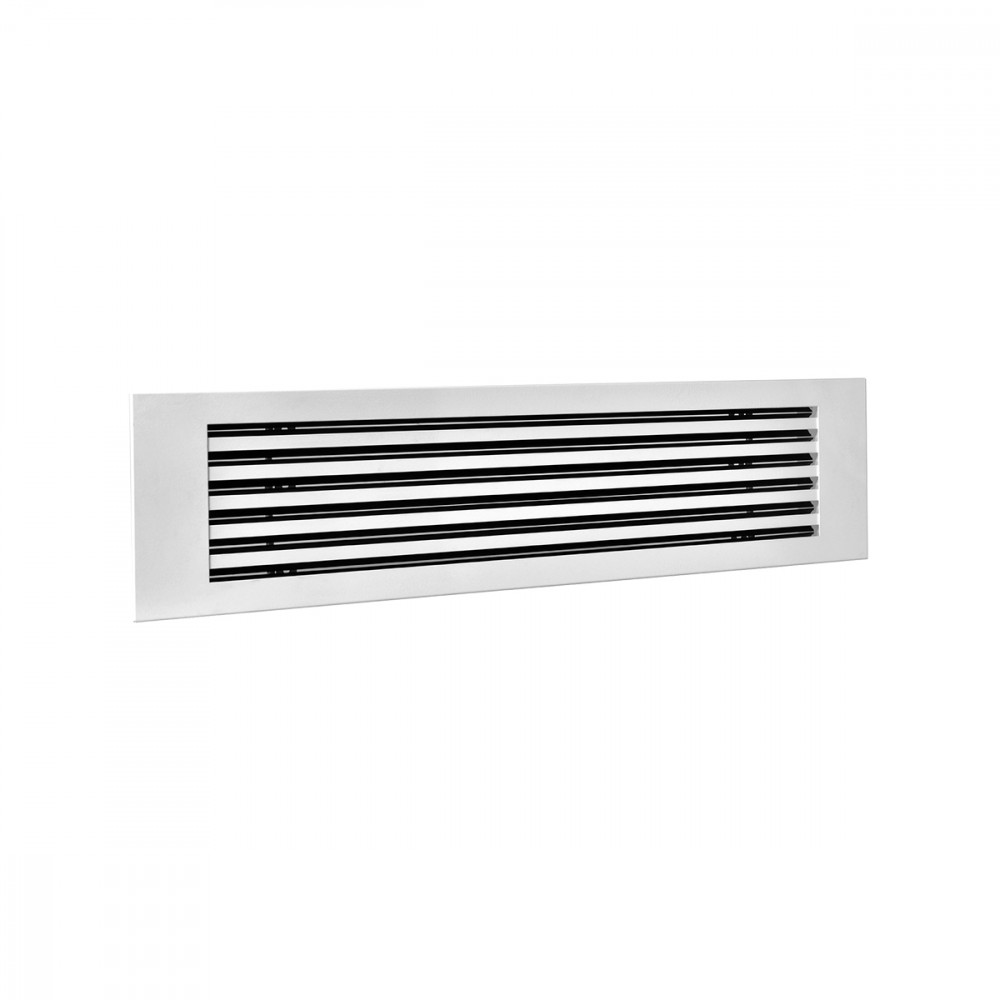

Linear slot diffusers with blade deflectors on panel in aluminium standard version DLF-P-S and Fine Line version DLF-P-FL.

CONSTRUCTION:

Linear diffuser in aluminium, panel all painted RAL 9010.

UTILIZATION:

For ceiling installation for air intake or supply.
Installation height: 2,5 - 3,1 m.

FIXING:

With panel of modular ceiling.

ACCESSORIES:

• Galvanized steel connecting plenum with insulation.

Dimensions

DLFP STANDARD

DLFPFL (FINE LINE)

DLFP

MEASURES

*= Panel Measure “L” having reduced on inquiry

MISURE

*= Slots

Accessories and configurations

DLFP

Standard

DLFPFL

Fine line

Specifications text

ALUMINIUM LINEAR SLOT DIFFUSER WITH ALUMINUM DEFLECTORS ON RAL9010 GALVANISED STEEL PANEL

CONSTRUCTION:
Linear aluminium diffuser, aluminium panel all painted RAL 9010.
DLFP Standard version and DLFPFL Fine Line version.
USE:
On the ceiling, for air supply and return. Installation height:2.5 - 3.1 m
INSTALLATION:
With panel on modular false ceiling.
ACCESSORIES:
Connection plenum in steel
MODEL: DLFP**/***/*** (type-no. slots-length mm)
