Mod. |
Ak [m2] |
Q [m3/h] |
LWA [dB(A)] |
X(0,25) [m] |
Dpt [Pa] |
||||
|
min |
max |
min |
max |
min |
max |
min |
max |
||
|
DCG 200 |
0,0314 |
310 |
950 |
39 |
64 |
2,1 |
6,7 |
10 |
50 |
|
DCG 250 |
0,0491 |
460 |
1410 |
38 |
62 |
2,4 |
7,7 |
10 |
50 |
|
DCG 315 |
0,0779 |
700 |
2140 |
37 |
61 |
2,9 |
9,1 |
10 |
50 |
|
DCG 400 |
0,1257 |
1080 |
3280 |
36 |
60 |
3,6 |
11,2 |
10 |
50 |
|
DCG 500 |
0,1963 |
1620 |
4900 |
35 |
59 |
4,5 |
14,5 |
10 |
50 |
|
DCG 630 |
0,3117 |
2450 |
7420 |
34 |
58 |
6,1 |
20,9 |
10 |
50 |

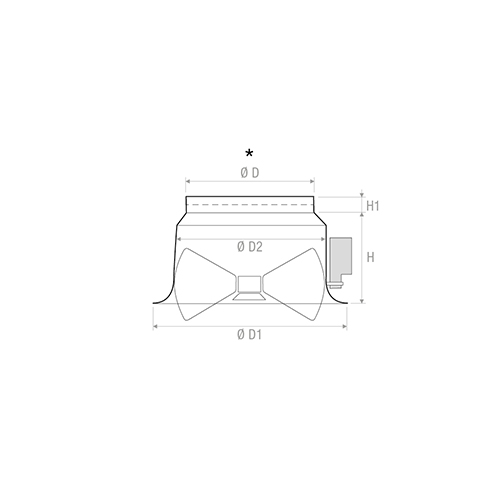

1= Optional damper
1= Optional damper
2= Insulation

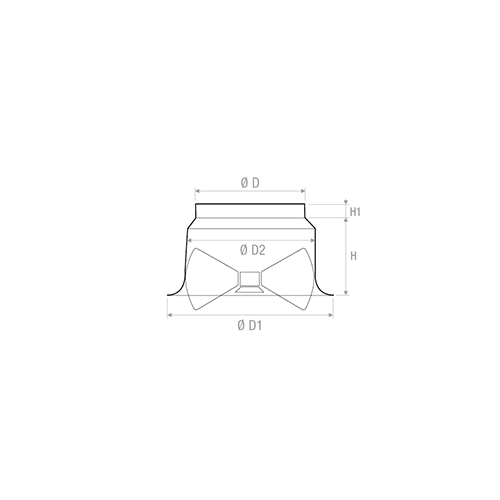

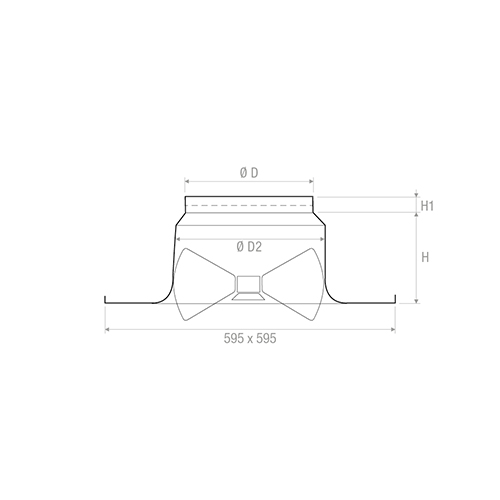

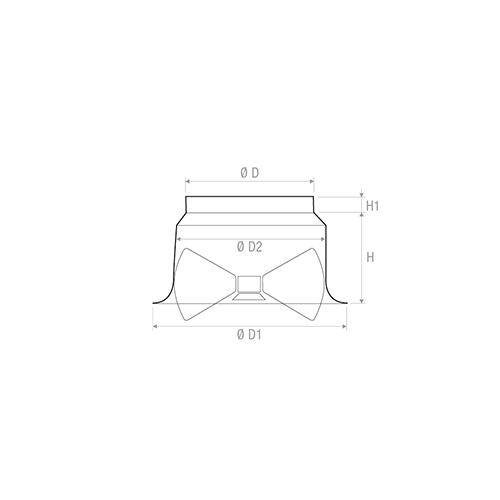

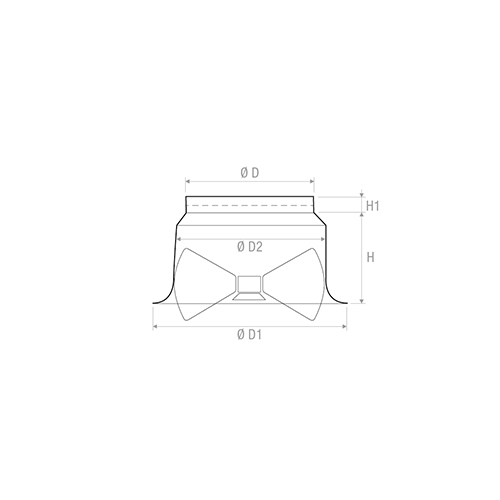

BxH= Nominal dimensions
Mm= Galvanized plenum

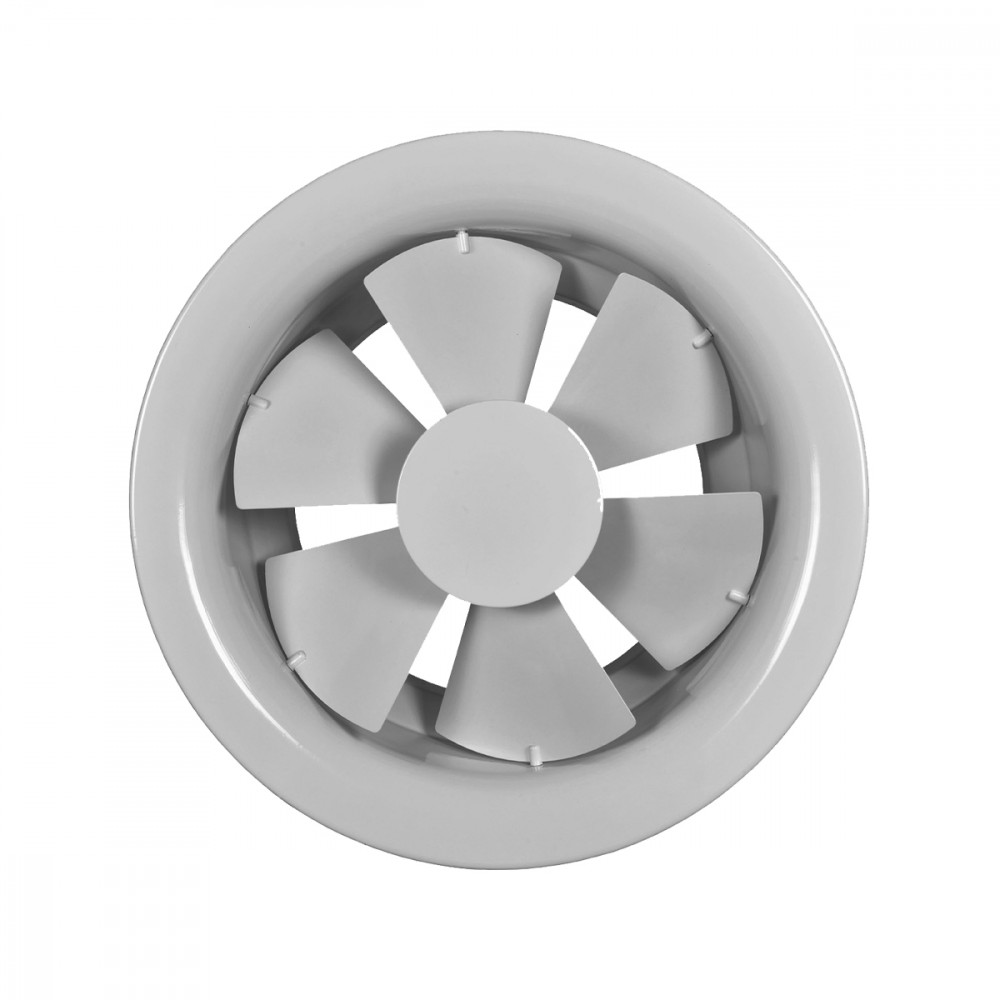

CIRCULAR DIFFUSER IN ALUMINIUM/GALVANISED STEEL RAL9010 WITH VARIABLE GEOMETRY
CONSTRUCTION:
Aluminium bell, steel blades, RAL 9010 white painted finish.
630 mm diameter with reinforced blades.
USE:
Ceiling or wall, for air supply. Installation height:2.5 - 20 m.
INSTALLATION:
Fixing by screws on the neck of the diffuser.
ACCESSORIES:
• Connection plenum in galvanised steel with insulation and control damper.
MODEL:DCG**/***
