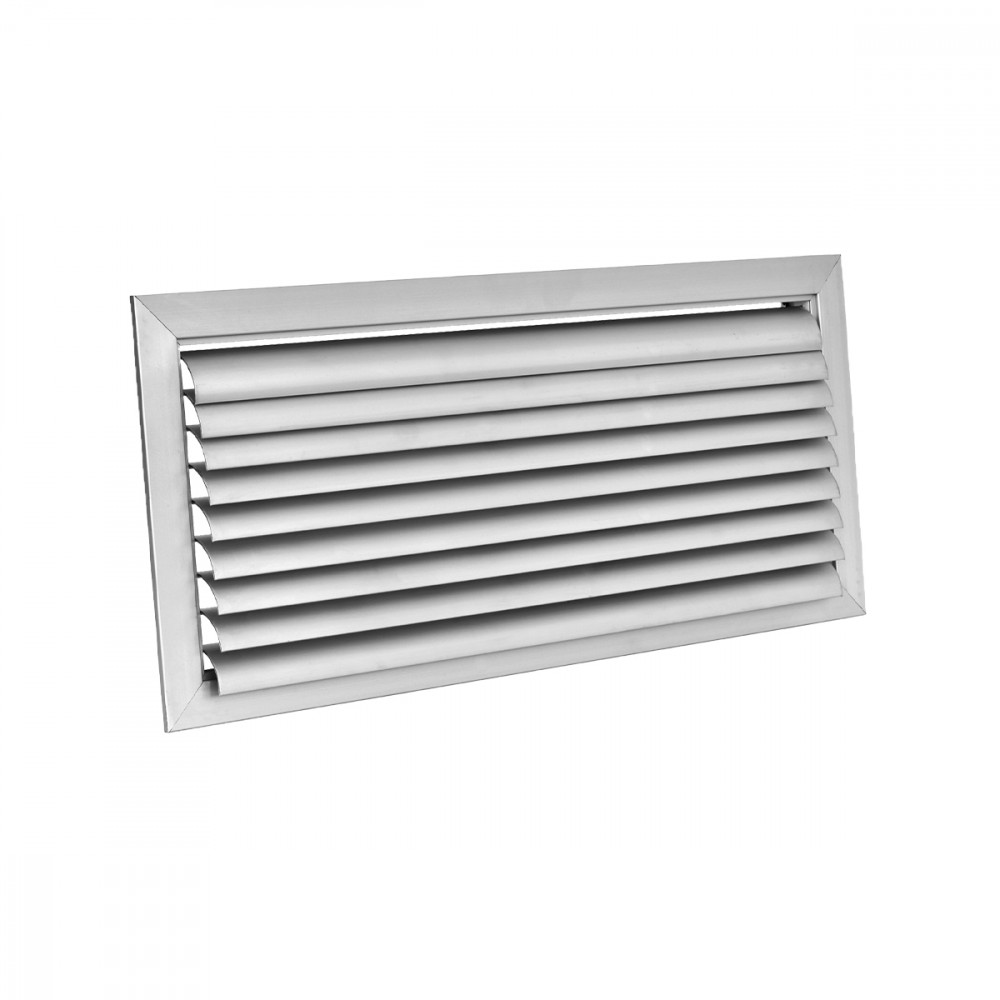

DCA
CHARACTERISTICS:
Curved blades air diffusers with 1, 2, 3 or 4 throw directions. CONSTRUCTION:
Anodized aluminium. UTILIZATION:
For ceiling installation and for air delivery.
Installation height: 2,4 – 3,2 m.
FIXING:
Fixing by using frontal screws or by clips. ACCESSORIES:
• Galvanized steel plenum, standard or insulated, with or without equalizer sheet.
• Calibration damper made of galvanized steel and fins with opposite movement.
Dimensions
1= Nominal dimension
1= Nominal dimension
1= Nominal dimension
1= Nominal dimension
CHOICE AND SIZING
|
Mod. |
Ak [m2] |
Q [m3/h] |
LWA [dB(A)] |
X(0,25) -Y(0,25) [m] |
Dpt [Pa] |
||||
|
min |
max |
min |
max |
min |
max |
min |
max |
||
|
DCALC12 200x100 |
0,0068 |
100 |
210 |
29 |
45 |
1,7-2,5 |
4,3-5,3 |
10 |
50 |
|
DCALC12 300x100 |
0,0104 |
150 |
320 |
31 |
48 |
2,5-3,0 |
5,1-7,4 |
10 |
50 |
|
DCALC12 400x100 |
0,0139 |
200 |
440 |
33 |
50 |
3,0-3,8 |
6,0-9,5 |
10 |
50 |
|
DCALC12 300x150 |
0,0157 |
230 |
490 |
34 |
50 |
3,2-4,3 |
6,2-10,3 |
10 |
50 |
|
DCALC12 500x100 |
0,0174 |
250 |
550 |
34 |
51 |
3,3-4,6 |
6,6-11,2 |
10 |
50 |
|
DCALC1 600x100 400x150 300x200 |
0,0210 |
300 |
660 |
34 |
51 |
3,5-5,3 |
7,2-12,8 |
10 |
50 |
|
DCALC12 500x150 |
0,0263 |
380 |
820 |
36 |
52 |
3,9-6,5 |
7,9-15,0 |
10 |
50 |
|
DCALC12 800x100 400x200 |
0,0281 |
410 |
880 |
36 |
53 |
4,0-6,9 |
8,2-15,8 |
10 |
50 |
|
DCALC12 600x150 300x300 |
0,0316 |
460 |
990 |
37 |
53 |
4,2-7,5 |
8,6-17,2 |
10 |
50 |
|
DCALC12 500x200 |
0,0351 |
510 |
1100 |
37 |
54 |
4,4-8,1 |
9,0-18,5 |
10 |
50 |
|
DCALC12 800x150 600x200 400x300 |
0,0422 |
610 |
1320 |
38 |
55 |
4,8-9,3 |
9,8-21,1 |
10 |
50 |
|
DCALC12 1000x150 500x300 |
0,0528 |
770 |
1650 |
39 |
56 |
5,3-11,0 |
10,9-24,7 |
10 |
50 |
|
DCALC12 800x200 |
0,0564 |
820 |
1770 |
40 |
56 |
5,5-11,6 |
11,3-26,0 |
10 |
50 |
|
DCALC12 600x300 |
0,0634 |
920 |
1990 |
40 |
57 |
5,7-12,6 |
11,9-28,2 |
10 |
50 |
|
DCALC12 1000x200 |
0,0705 |
1020 |
2210 |
41 |
57 |
6,0-13,5 |
12,5-30,4 |
10 |
50 |
|
DCALC12 800x300 |
0,0847 |
1230 |
2650 |
42 |
58 |
6,5-15,5 |
13,6-34,5 |
10 |
50 |
|
DCALC12 1000x300 |
0,1059 |
1540 |
3320 |
43 |
59 |
7,3-18,3 |
15,1-40,4 |
10 |
50 |
|
DCALC12 800x400 |
0,1130 |
1640 |
3540 |
43 |
60 |
7,5-19,1 |
15,6-42,3 |
10 |
50 |
|
DCALC12 595x595 |
0,1250 |
1810 |
3920 |
44 |
60 |
7,8-20,5 |
16,3-45,4 |
10 |
50 |
|
DCALC12 1000x400 800x500 |
0,1413 |
2050 |
4430 |
44 |
61 |
8,3-22,4 |
17,3-49,4 |
10 |
50 |
|
DCALC12 1000x500 |
0,1767 |
2560 |
5530 |
45 |
62 |
9,1-26,2 |
19,2-57,6 |
10 |
50 |
|
DCAL344Q 300x300 |
0,0317 |
460 |
990 |
37 |
53 |
1,3-2,7 |
2,7-5,5 |
10 |
50 |
|
DCAL344Q 400x400 |
0,0565 |
820 |
1770 |
40 |
56 |
1,7-3,4 |
3,5-7,0 |
10 |
50 |
|
DCAL344Q 500x500 |
0,0884 |
1280 |
2770 |
42 |
58 |
2,0-4,1 |
4,3-8,5 |
10 |
50 |
|
DCAL344Q 595x595 |
0,1252 |
1820 |
3920 |
44 |
60 |
2,4-4,7 |
4,9-9,9 |
10 |
50 |
Accessories and configurations
PDZ1
PDZ2
PDZI1
Plenum externally insulated thickness 6 mm
PDZI2
Plenum externally insulated thickness 6 mm
DCAC1
DCAC2
DCAL1
DCAL2
DCAL3
DCAL4
DCAL4Q
Specifications text
ALUMINUM DIFFUSER WITH CURVED BLADES WITH 1, 2, 3 OR 4-WAY THROW DIRECTION
CONSTRUCTION:
Anodised aluminium.
USE:
On the ceiling, for air supply. Installation height:2.4 - 3.2 m
INSTALLATION:
Fixing with front screws or with clips.
ACCESSORIES:
• Standard or insulated galvanised steel plenum, with or without equalising grid.
• Volume control damper in galvanised steel with opposed blades.
MODEL: DCA
SIZES: *** x *** mm. (WxH)
Documents download
DCAInformation request
Write us a message
