DCP

CHARACTERISTICS:

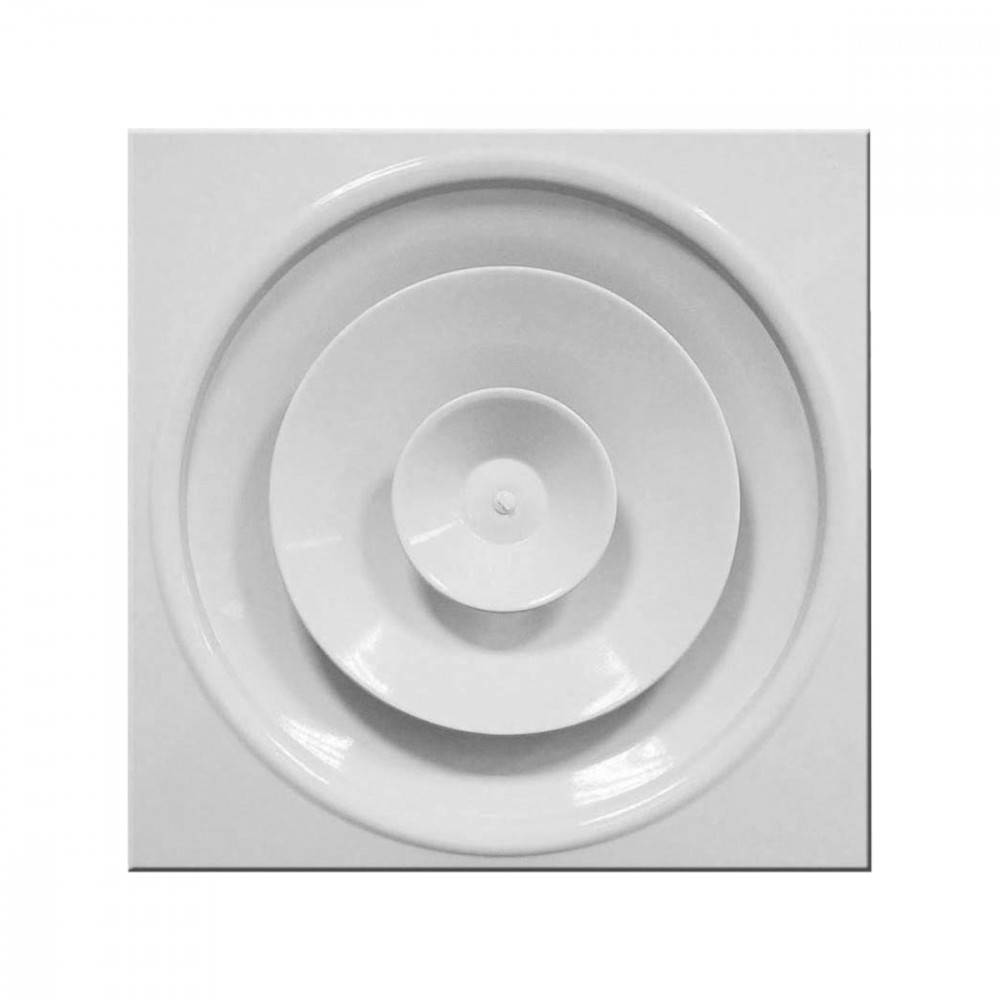

Circular diffusers with adjustable cones on panel.

CONSTRUCTION:

White RAL 9010 painted steel.

UTILIZATION:

For ceiling installation and for air intake and delivery.
Installation height: 2,7 – 3,5 m.

FIXING:

Mounting with panel on modular ceiling.

ACCESSORIES:

• Galvanized steel connecting plenum.
• Batterfly damper (SF) with central screw adjustment through the centre of the diffuser.
• Equalizer (EQ).

Dimensions

DC

MISURE

M= Model

Accessories and configurations

PDC

1= Optional damper

PDCI

1= Optional damper

2= Insulation

MEASURES

Specifications text

CIRCULAR DIFFUSER WITH ADJUSTABLE CONES IN STEEL RAL9010 ON PANEL 595x595 MM.

CONSTRUCTION:
RAL 9010 white painted steel.
USE:
On the ceiling, for air supply and return. Installation height:2.7 - 3.5 m
INSTALLATION:
Fixing with panel on modular false ceiling.
ACCESSORIES:
• Connection plenum in galvanised steel.
• Butterfly control damper (SF) (adjustment by central screw through the front part of the diffuser).
• Equaliser (EQ).
MODEL: DCP***
